Industrial Pipeline Valves

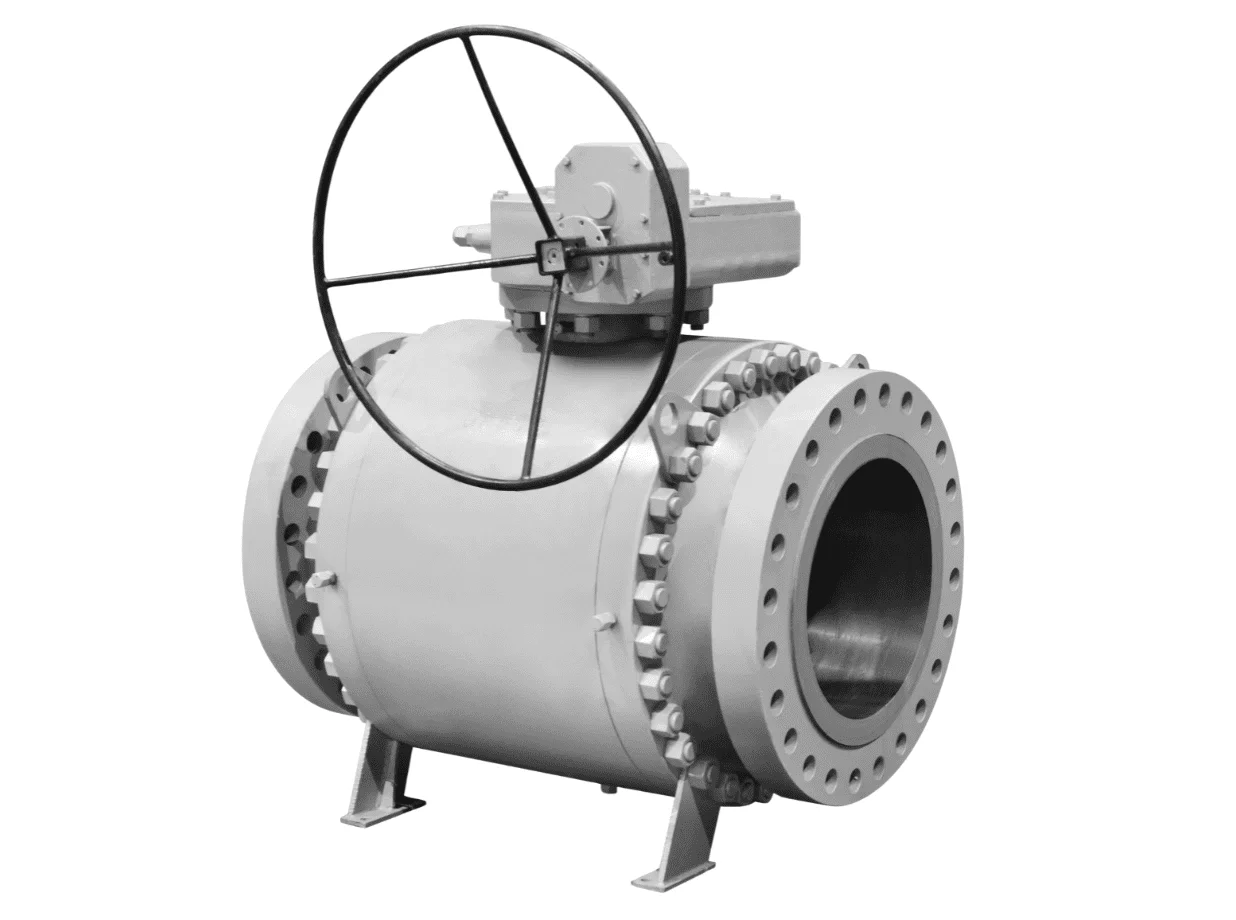

Ball Valves
Rapid Isolation
Quarter-turn valves engineered for bubble-tight shut-off in high-pressure oil and gas pipelines, available in both Floating and Trunnion-mounted designs.
- Types: Floating Ball, Trunnion Mounted, Top Entry, and Side Entry
- Design: Full Bore (FB) or Reduced Bore (RB) for pigging operations
- Seats: Soft Seated (PTFE/Devlon) or Metal-to-Metal for abrasive media
- Features: Double Block and Bleed (DBB) and Anti-Static design
- Operation: Lever, Gear, or Automated (Pneumatic/Electric)

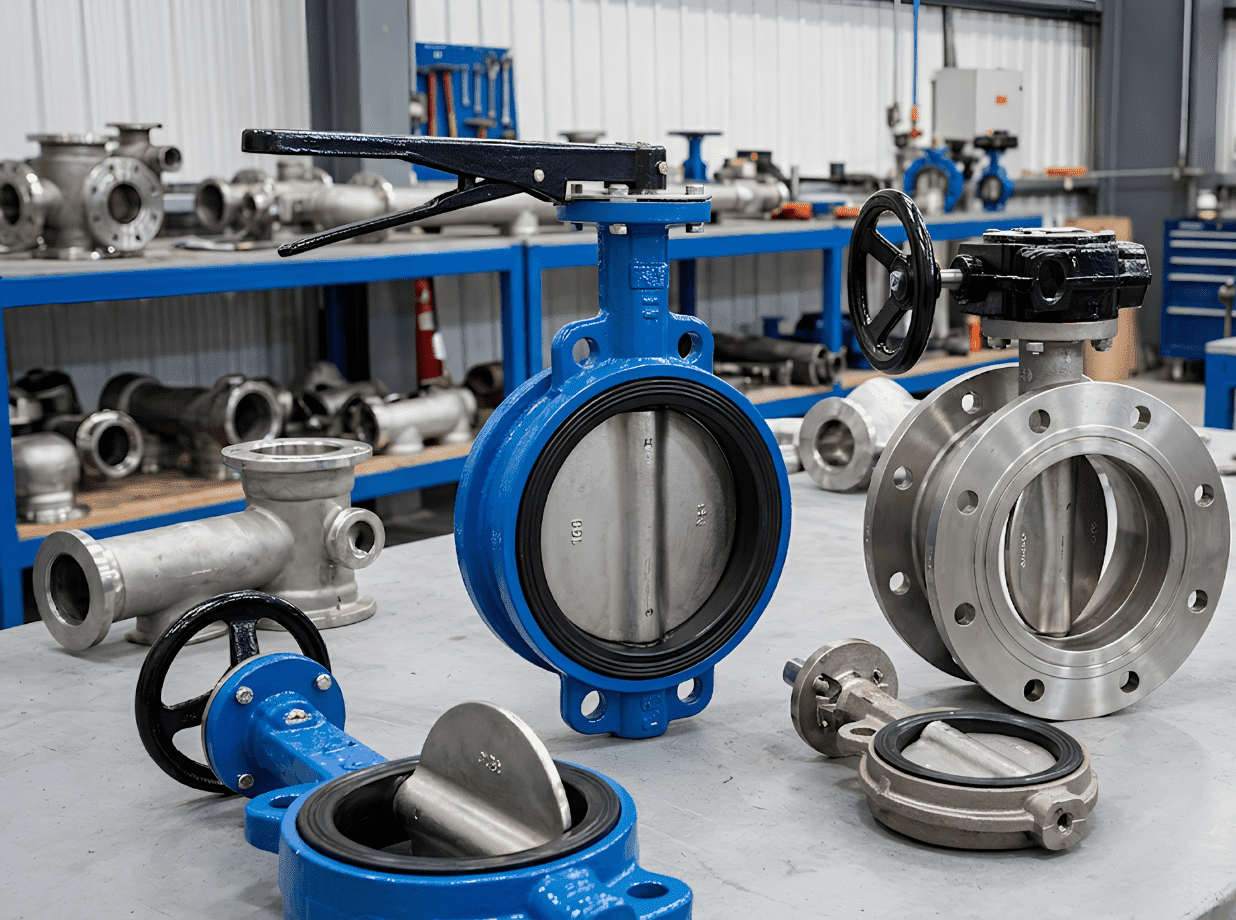

Butterfly Valves
Compact Regulation
Space-saving valves ideal for large-diameter pipelines, offering reliable flow control and low-pressure drop across water and utility lines.
- Design: Concentric, Double Offset, or Triple Offset for severe service
- Connection: Wafer, Lug, and Double Flanged configurations
- Performance: Zero-leakage bi-directional sealing
- Materials: Ductile Iron, Carbon Steel, and Stainless Steel bodies
- Service: Excellent for cooling water, HVAC, and fire protection systems

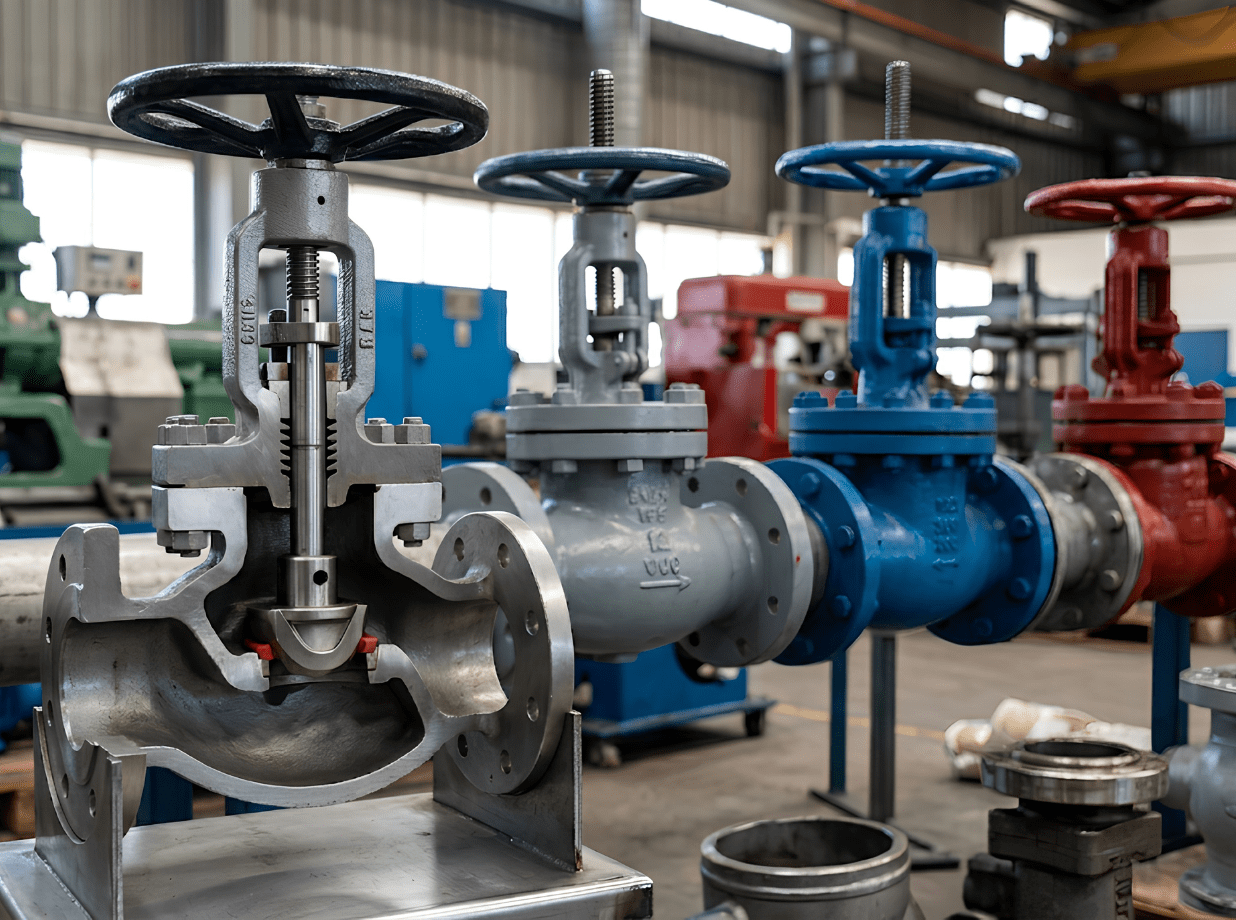

Globe Valves
Precision Throttling
Specifically designed for regulating fluid flow and frequent operation where precise throttling and manual control are required.
- Bonnet: Bolted Bonnet or Pressure Seal for high-pressure steam
- Stem: Rising stem with outside screw and yoke (OS&Y)
- Disc: Plug, Composition, or Needle-type for specific flow curves
- Standards: ASME B16.34 and API 623 compliant
- Applications: Steam systems, boiler feed water, and chemical processing

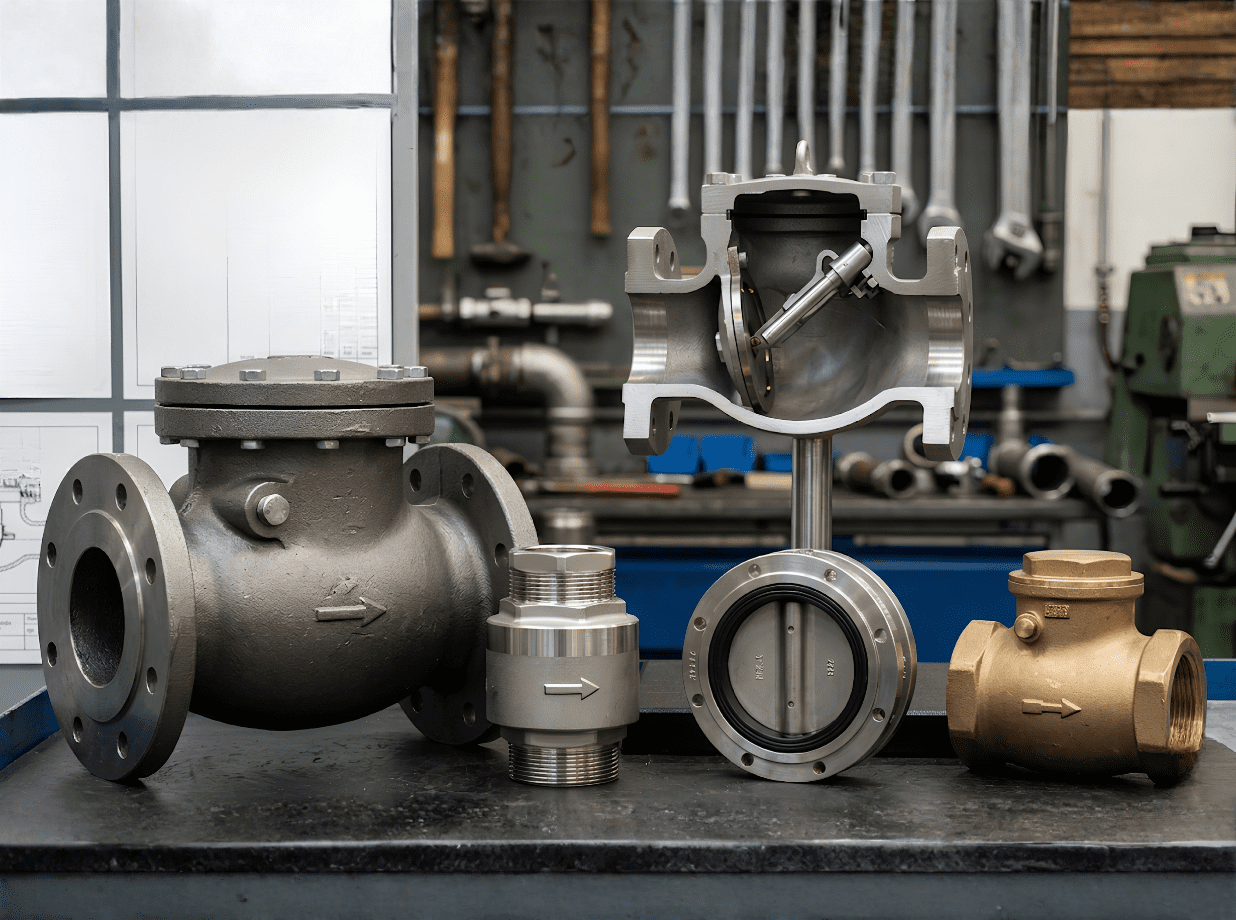

Check Valves
Backflow Prevention
Automatic safety valves designed to prevent reverse flow and protect pumps, compressors, and sensitive downstream equipment from water hammer.
- Mechanisms: Swing Check, Dual Plate (Wafer), Piston, and Tilting Disc
- Response: Rapid closure to minimize slamming and pressure surges
- Materials: Forged or Cast Steel with hardened trim (Stellite)
- Seat: Integrated or Renewable seat rings to extend service life
- Installation: Horizontal or vertical flow orientations available
