Flow Line products
Hammer unions

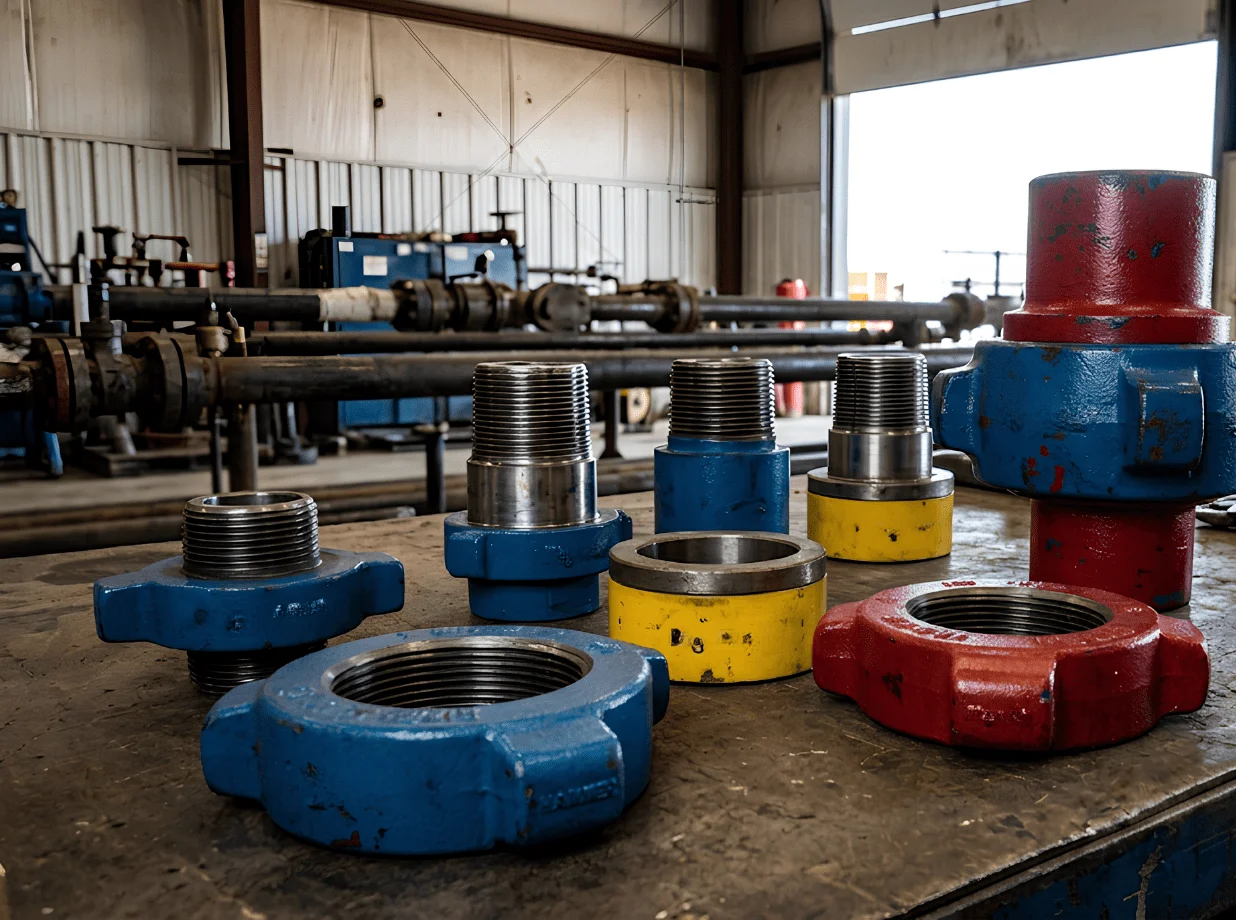

Hammer unions allow for quick connecting pipelines and flexible hose assemblies in the oil and industry . They are popularly used on onshore and offshore drilling rigs to transfer petroleum, gas, drilling mud, cement, water, air and many other media. our sourcing partners offers a comprehensive range of standard and sour gas Hammer Unions. Each union is throughly inspected to ensure long dependable service in the most extreme condition.
SPECIFICATIONS
• Range size: 1/2″-12″
• ASTM A-105 for a working pressure less than
6,000psi
• AISI 4130 for a working pressure greater than or
equal to 6,000psi
• Meet the National Association of Corrosion Engineers
Standard NACE MR-01-75
• Maximum cold working pressure: 15,000psi
FEATURES
• Complete traceability
• Three lug nuts and self-locking ACME threads provide
quick make-up and break-out
• Color coded for quick identification
• All unions provide pressure-tight & positive sealing for
low-pressure services (500 to 2,000 PSI)
• The spherical surface male sub and angular surface female
sub-form a metal-to-metal seal, the ball and tangent
provides a perfect seal
• Fully interchangeable with most major brands
of Hammer Unions.

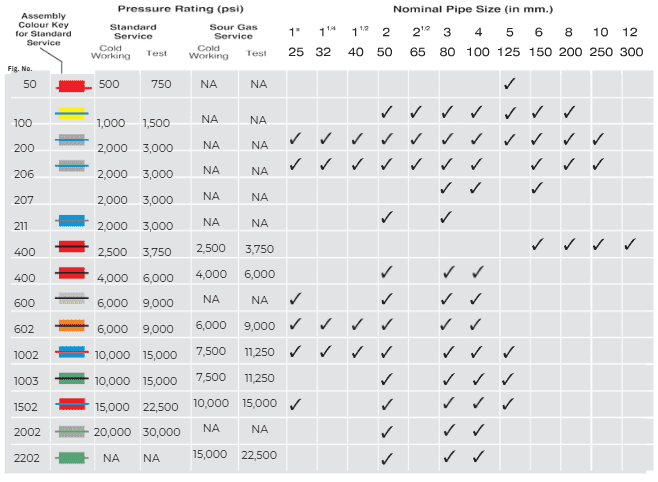

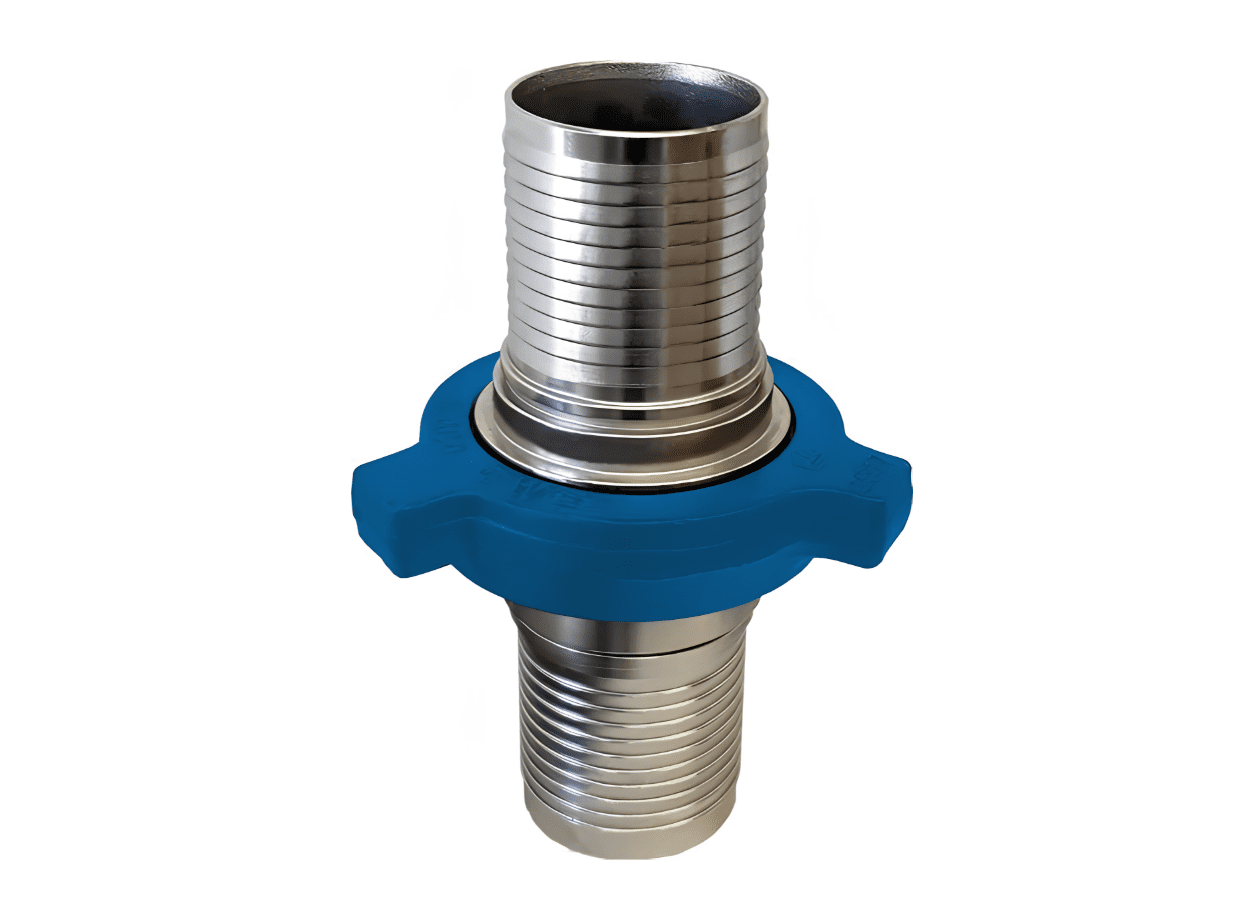

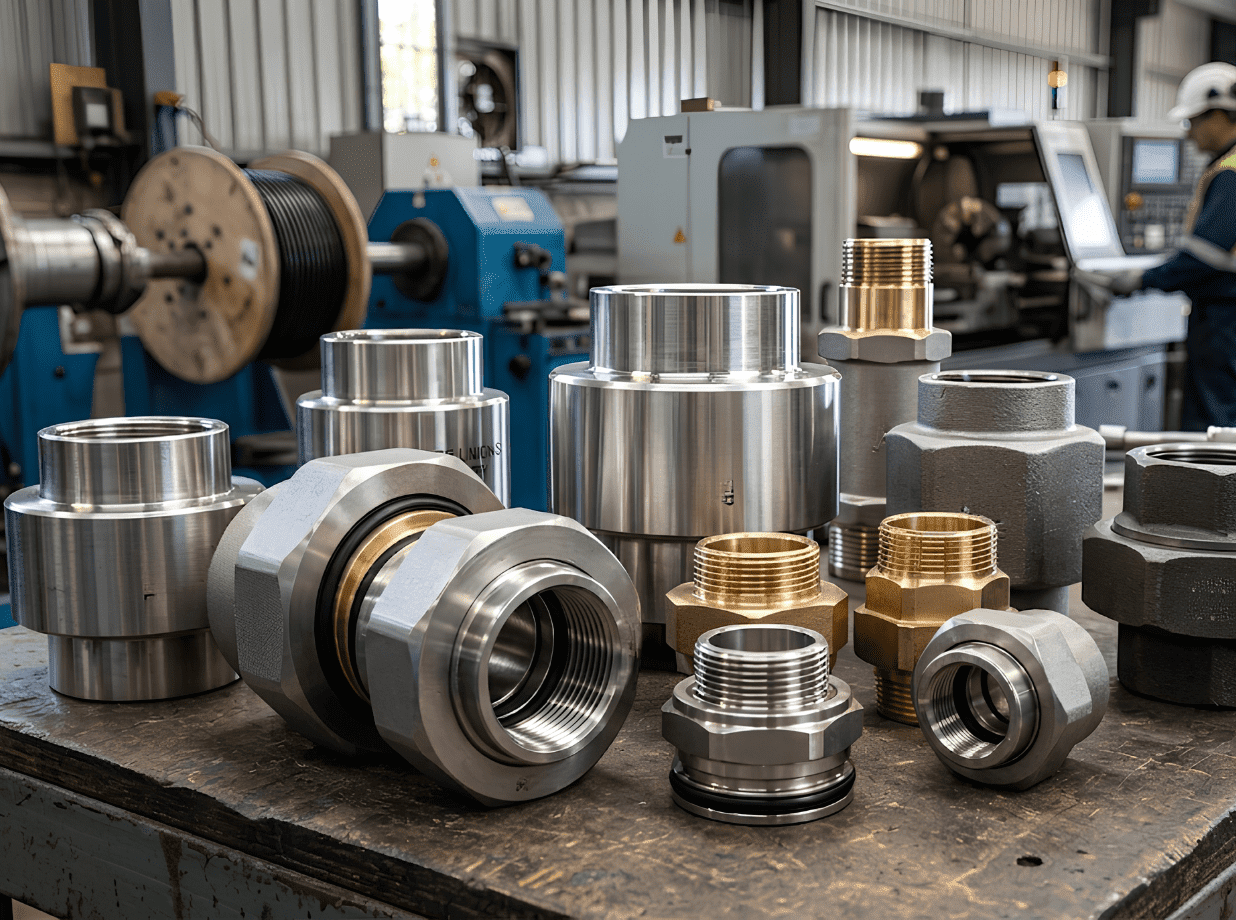

Hose Unions & Blinds
- These Hose Unions are manufactured from steel Forgings using materials appropriate to specific pressure ratings up to 400 psi.
- Fig 206 ‘O’ ring for improved sealing, barb style connection with ss snap ring for safety.
- Male and Female Blind with or without NPT ports.
- Available Size 1” to 12” with Fig 602 and Fig 1502.
- Available in Standard and Sour Service.
- Test plug are available as per the customer’s required connections.

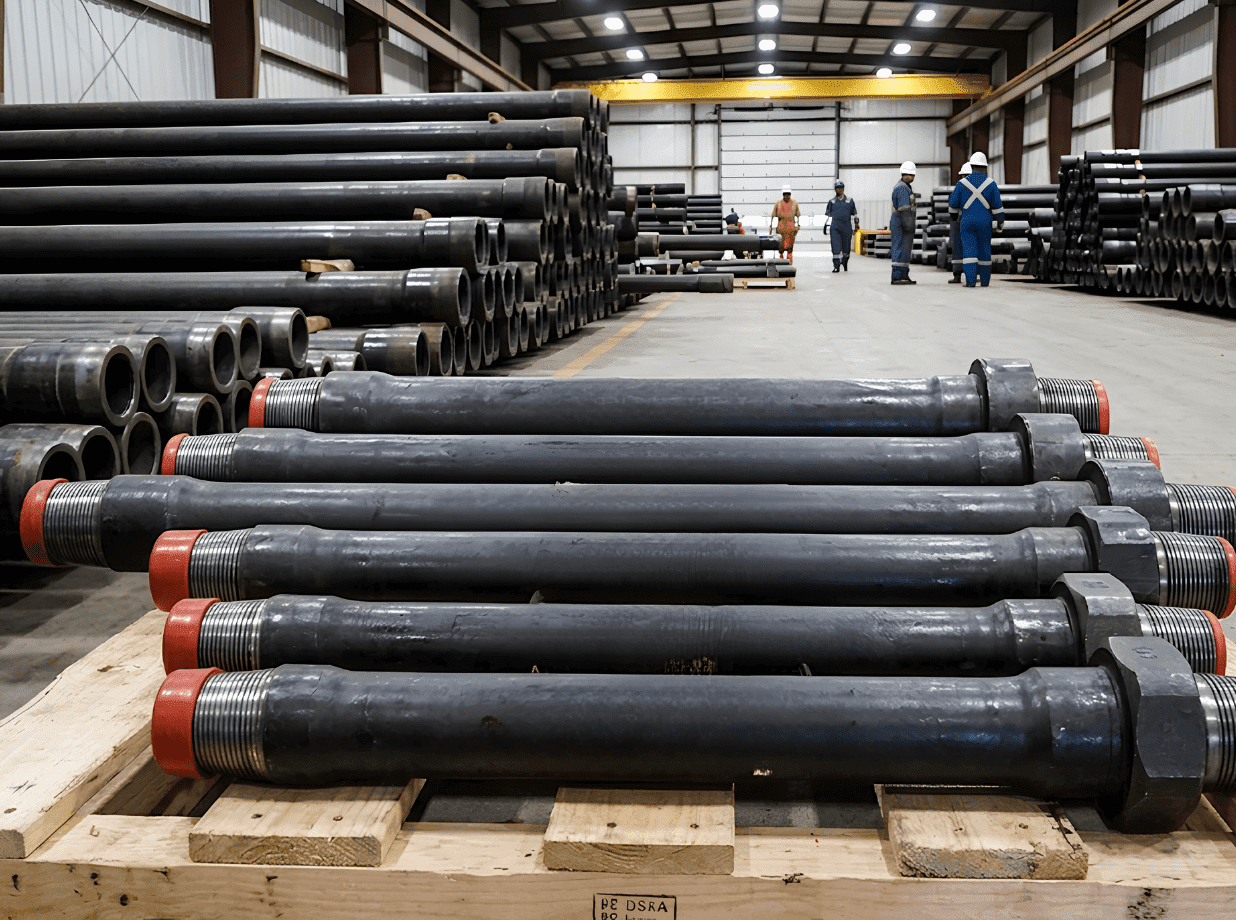

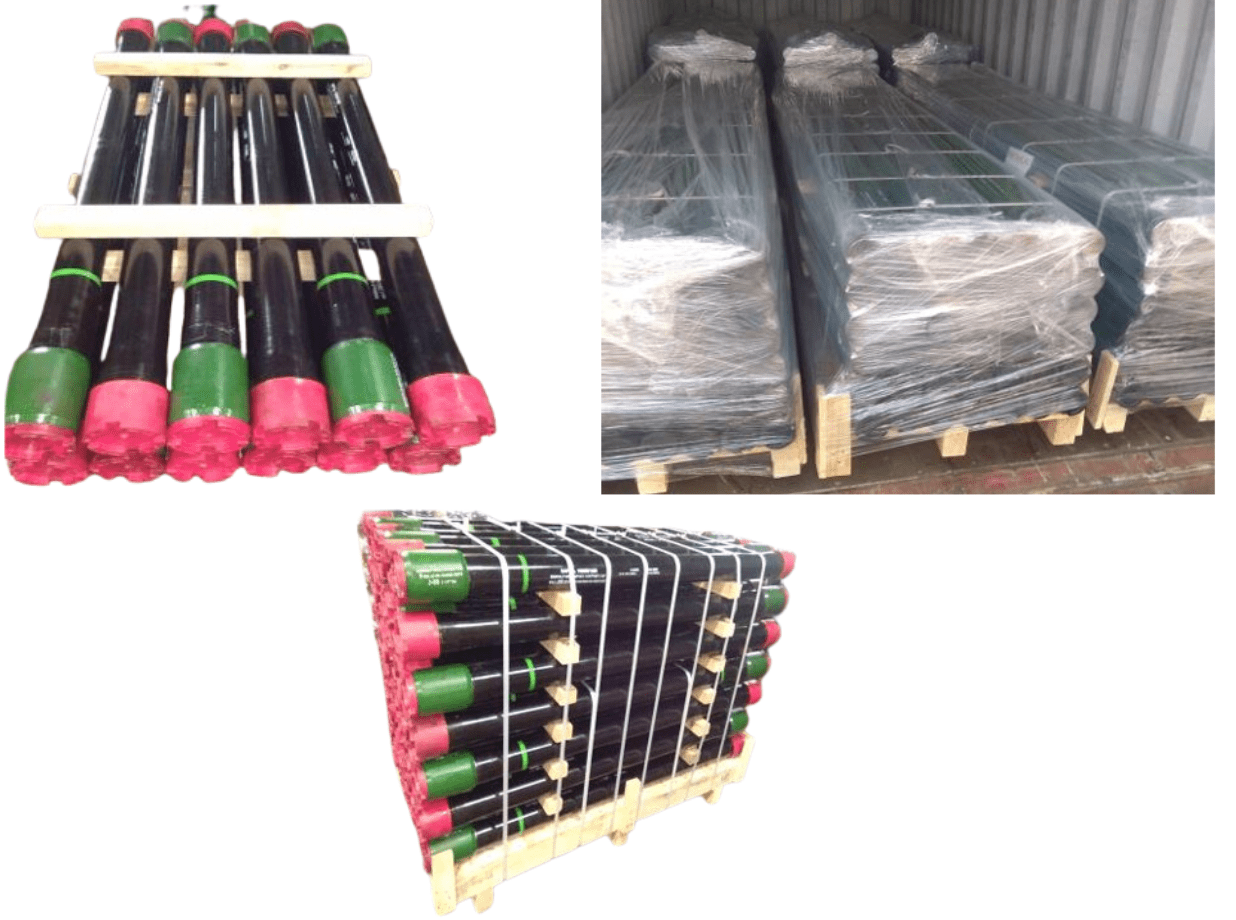

Pup Joints
- Our sourcing partners offers 2” & 3” 15000 PSI (Code Red) Integral alloy steel pup joints are available in lengths up to 12 feet.
- They feature an entirely one-piece, upset-forged construction, made for
use where welded or threaded connections are not recommended.
- These pup joints can be used with the complete range of high-pressure and abrasive oilfield fluids.
- Available in both standard and sour service.
- Non-pressure Seal Pup joints are available in 1”, 2” & 3” nominal sizes.
- These Pup joints are 100% hydrostatically tested at 1.5 times the rated cold working
pressure.
pressure, 10000 PSI (Sour) and 15000 PSI (Standard).
- Standard lengths range from 1 foot up to 12 feet at cold working
- Non-Standard lengths are available with minimum lead time.
Flowline Extensions
A Pup Joint is a short casing or tubing used for handling production tubing assemblies and for spacing out full length tubing and casing strings.
Pup Joints Available
Pin x Box
Pin x Pin
Available Lengths
2’, 3’, 4’, 5’, 6’, 8’, 10’ & 12’
Standard length tolerance
Available API Grade :
- H40
- J55
- K55
- N80
- R95
- L80
- C90
- T95
- C110
- P110
- Q125

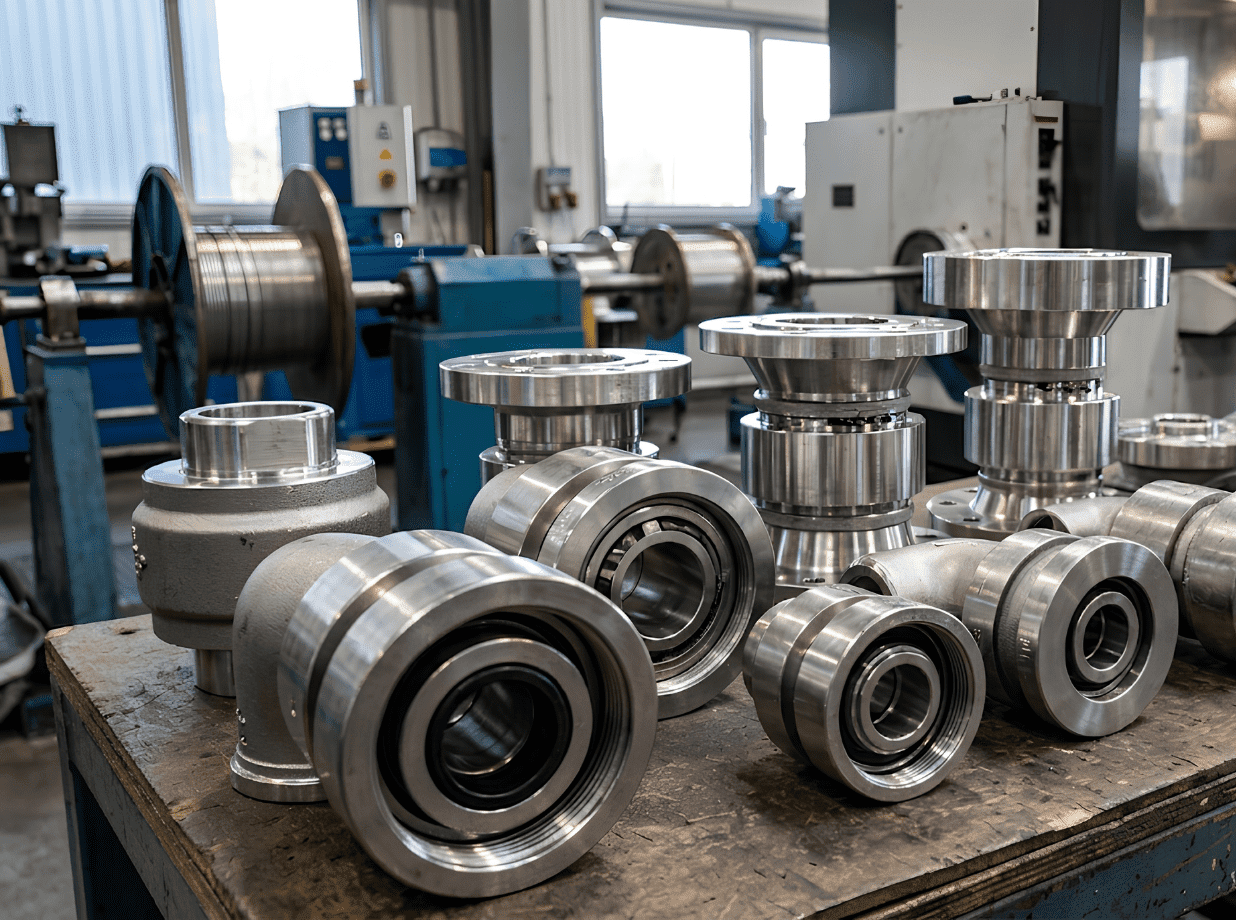

Swivel Joints
Code Red (Long Radius)

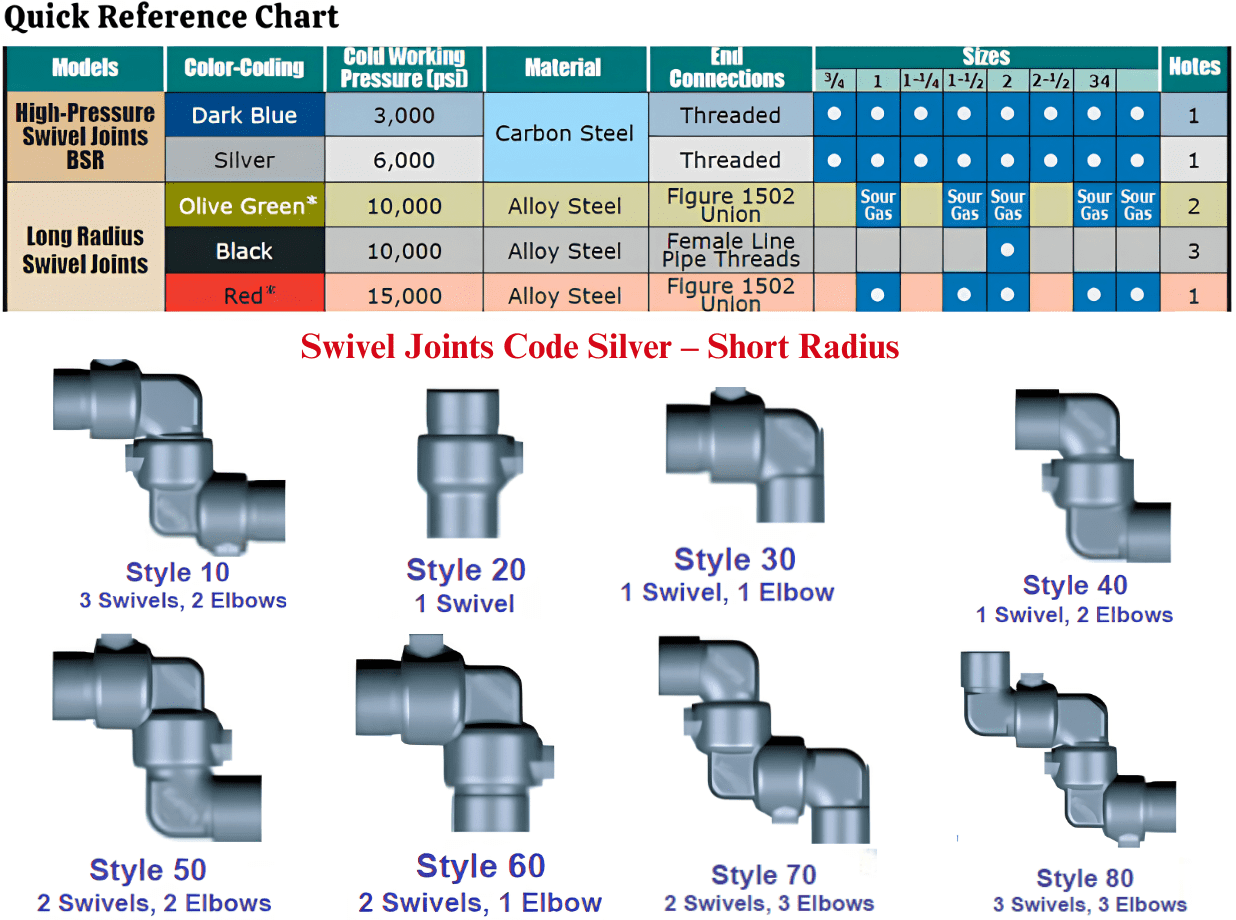

Swivel Joints are manufactured both for standard service & sour service. Long sweep swivel joints are designed generally from 6000 PSI CWP to 20,000 PSI CWP, both for standard and sour service and ensure better flow characteristics. Smooth and round bore design keeps pressure drop low and minimizes turbulence.
Long sweep sour service swivel joints are manufactured in accordance with NACE standard, MR-01 – 75 (Latest).
Swivel Joints Code Red – Long Radius
- Swivel Joints offers extra high-pressure long radius Swivel Joints, Figure 1502 & 1002, In 2”, 3” & 4 “ Sizes.
- Recommended for test line, fracturing, cementing & well servicing up to 15000 PSI CWP.
- Precision machined from forged alloy materials heat-treated for longer service.
- Three ball-bearing race bases that more evenly share moment loads.
- Optimal combination of core strength and case hardness, without sacrificing ductility.
- Available Styles No. 10 to Styles No. 100
- Available in both Standard and Sour Services.

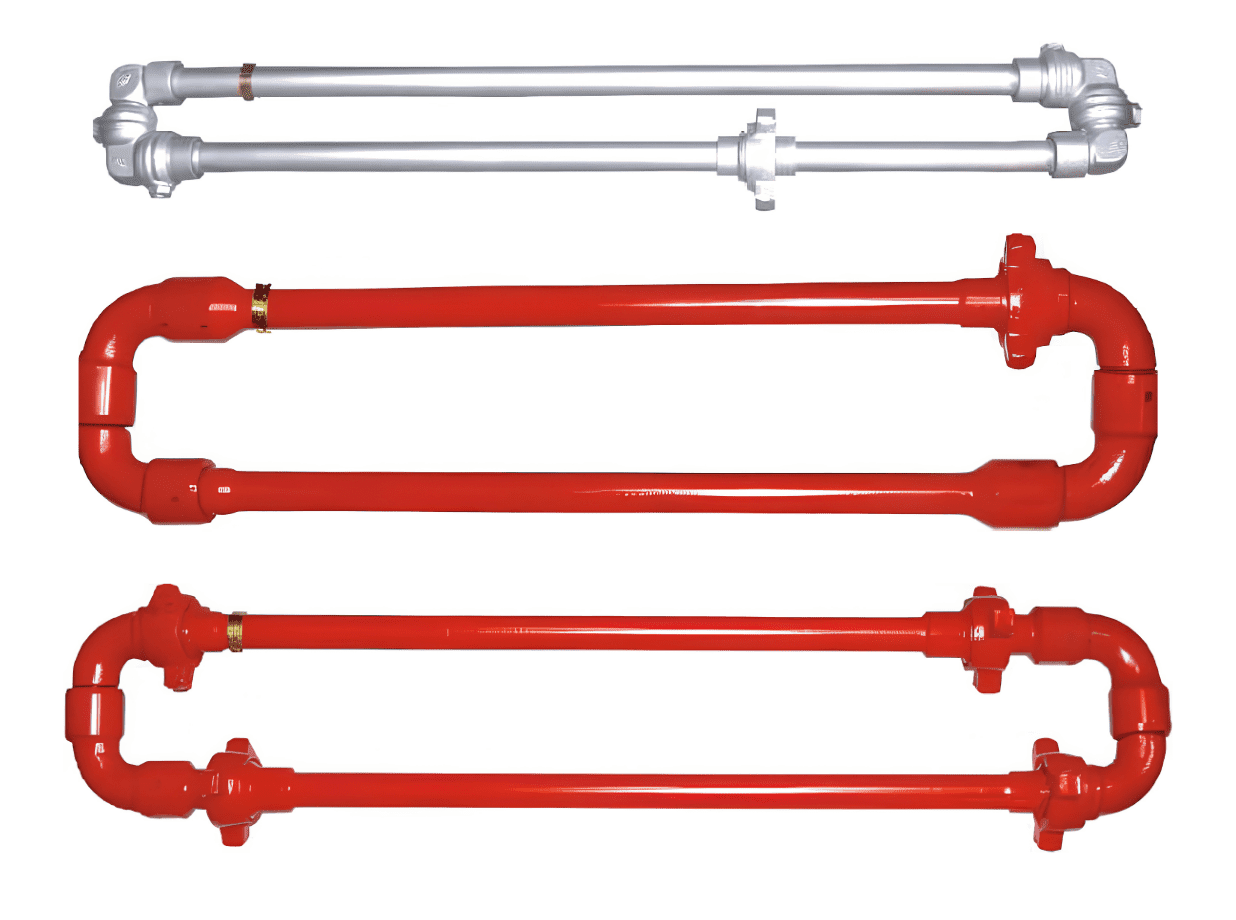

C & C Hose Loops
- Extra High-pressure Cementing / Circulating Hose Loops, Fig. 1502,1002 & 602 in 2” & 3” sizes of length 10 foot and 12 foot.
- For test lines, fracturing, acidizing, cementing & well servicing up to 15000 & 6000 PSI CWP.
- Hose loops can be custom-ordered in non-standard lengths.
- Manufactured to the highest quality standards in the industry.
- Available in both Standard and Sour Service for Fig. 1502 & 1002 and Standard service for 602 (Silver Code).
- For Fig. 602 (Silver Code) available end connections, one wing union and two style 50 or style 10 or one Style 50 and Style 10 swivel joints with threaded ends.
- For Fig. 1502 one wing union and one each style 50 and style 10 swivel joints with integral wing union ends.
- Four wing unions and two style 50 or 10 swivel joints with integral wing union ends.
- Four wing unions and two style 50 or style 10 swivel joints.

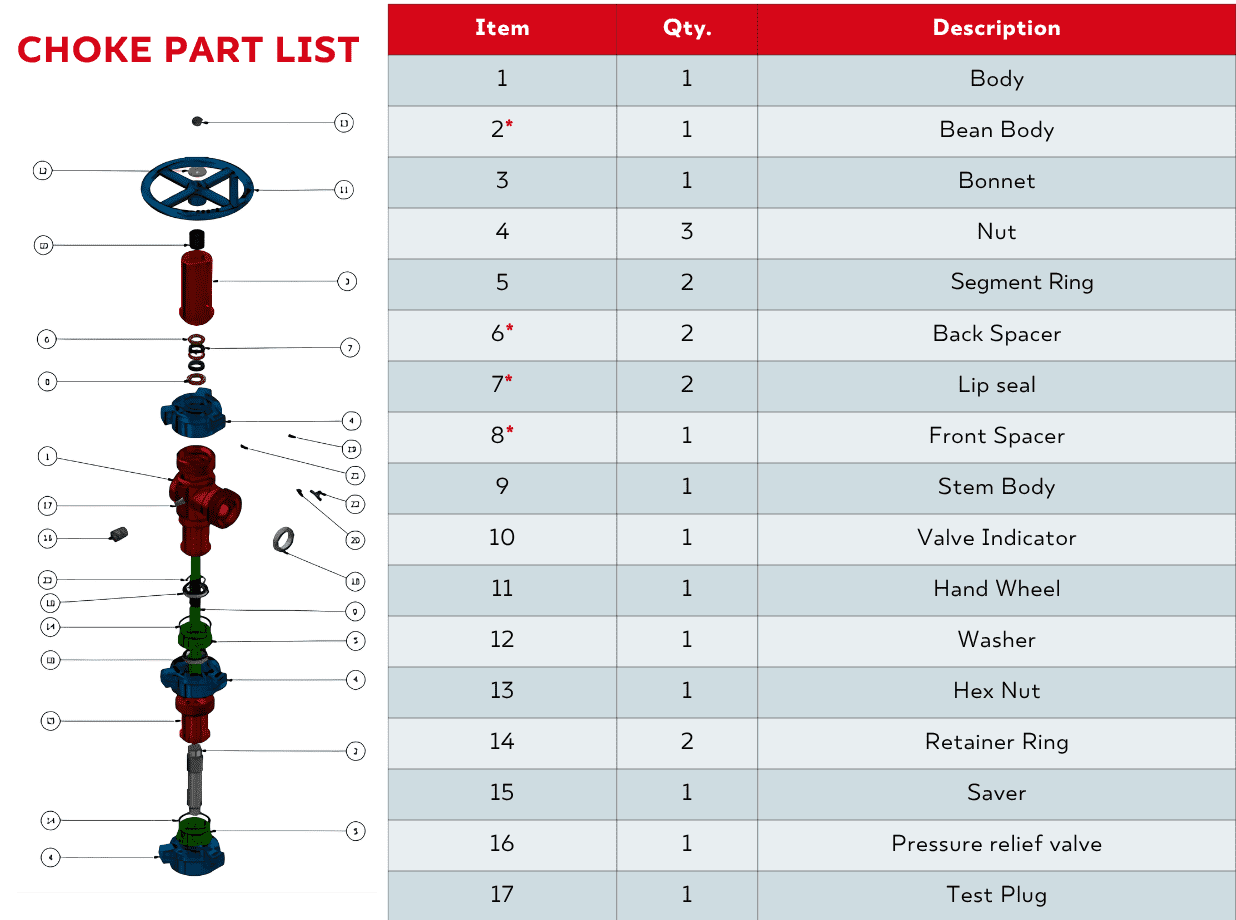

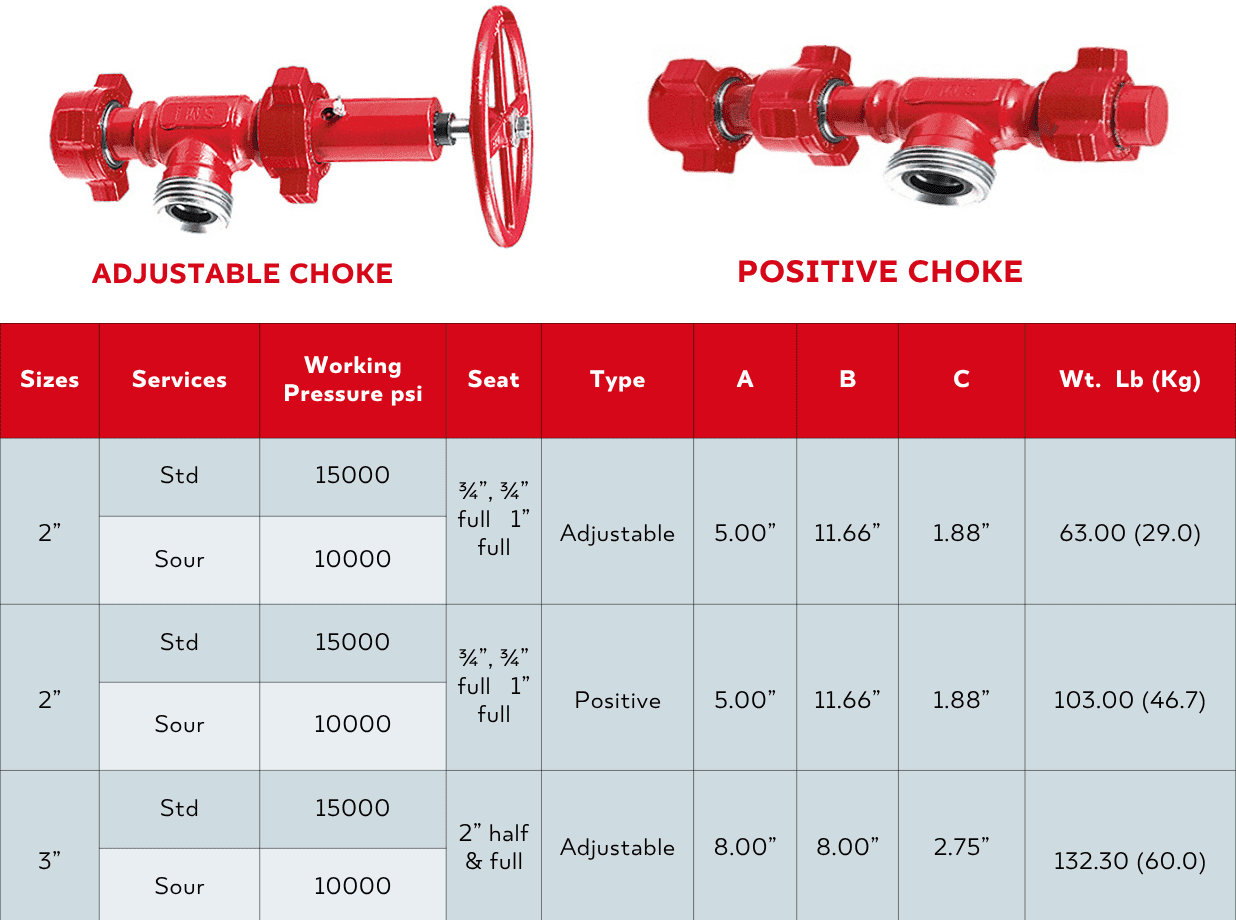

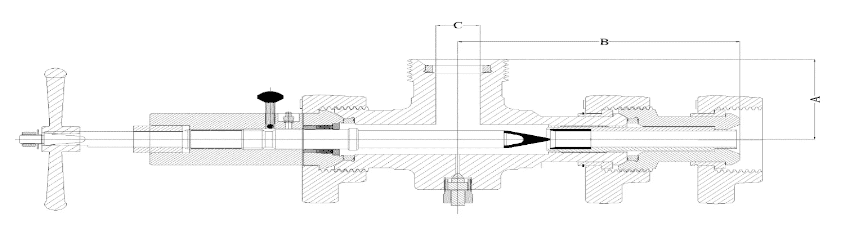

Positive choke
Code Red (Long Radius)
- Standard service is used up to 15000 psi and tested at 22500 psi.
- Sour service(H2S) is used up to 10000 psi and tested at 15000 psi.
- Hammer Union end connections.
- Forged alloy steel body, stainless steel and tungsten carbide parts.
- Parts are interchangeable with major brands.
- Suitable for a broad range of operations including wellhead and well tastings.

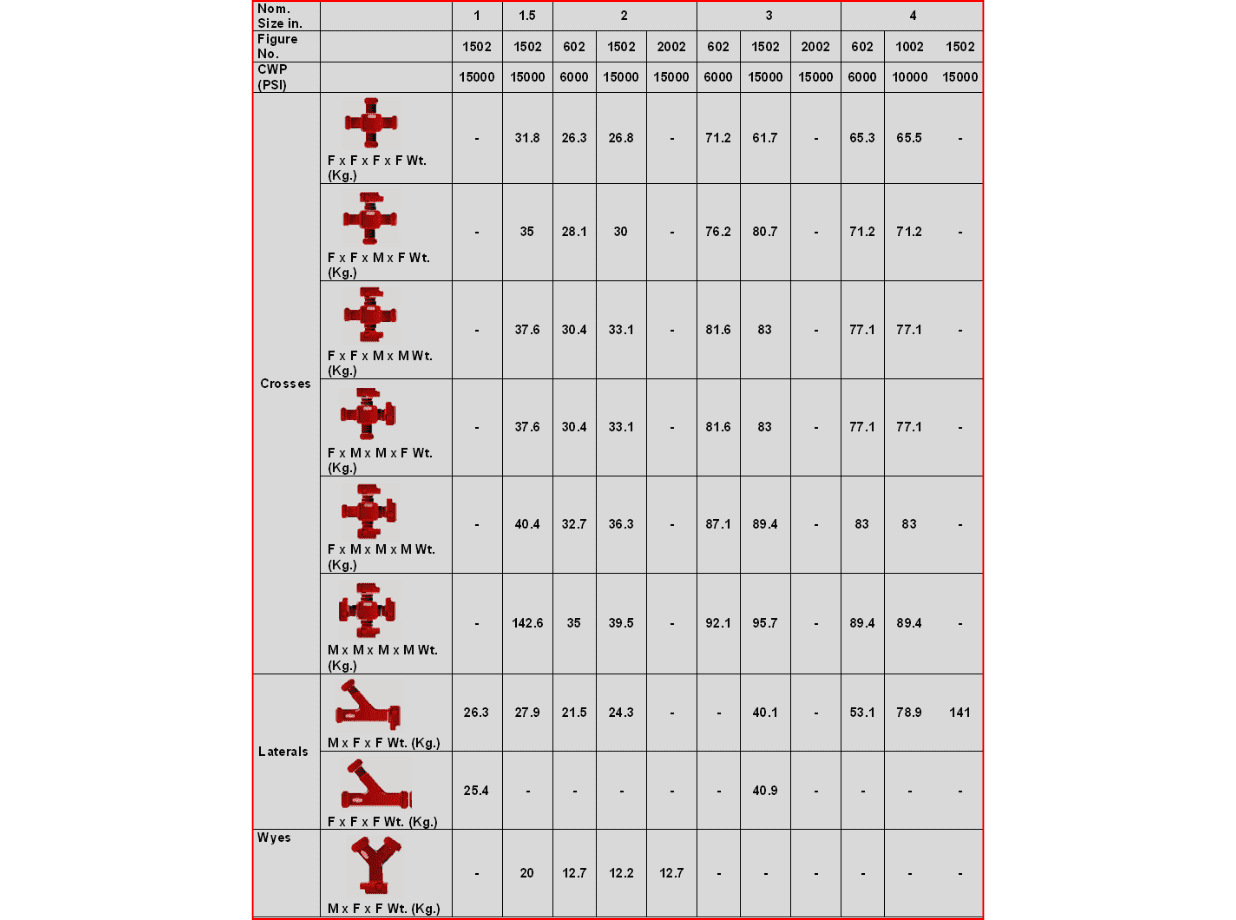

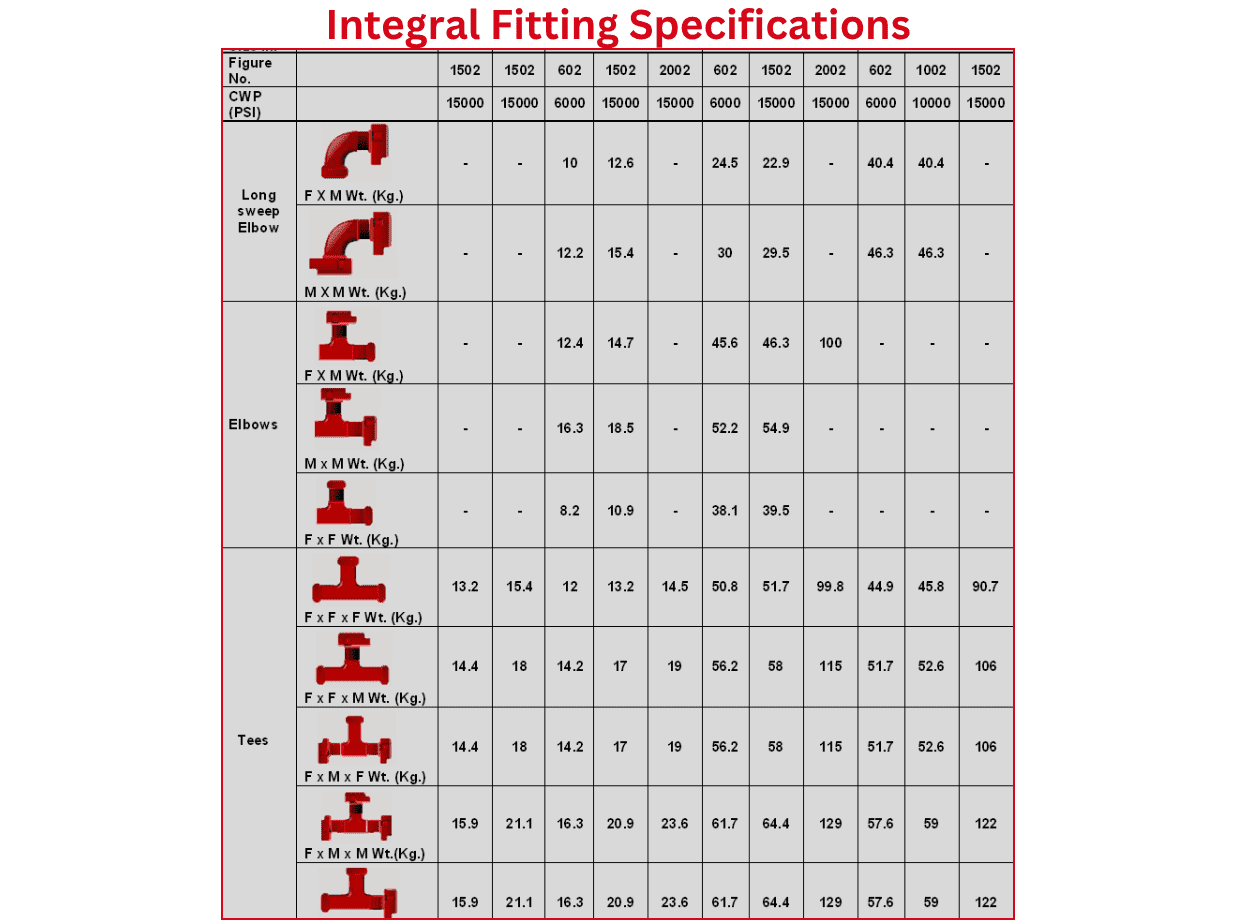

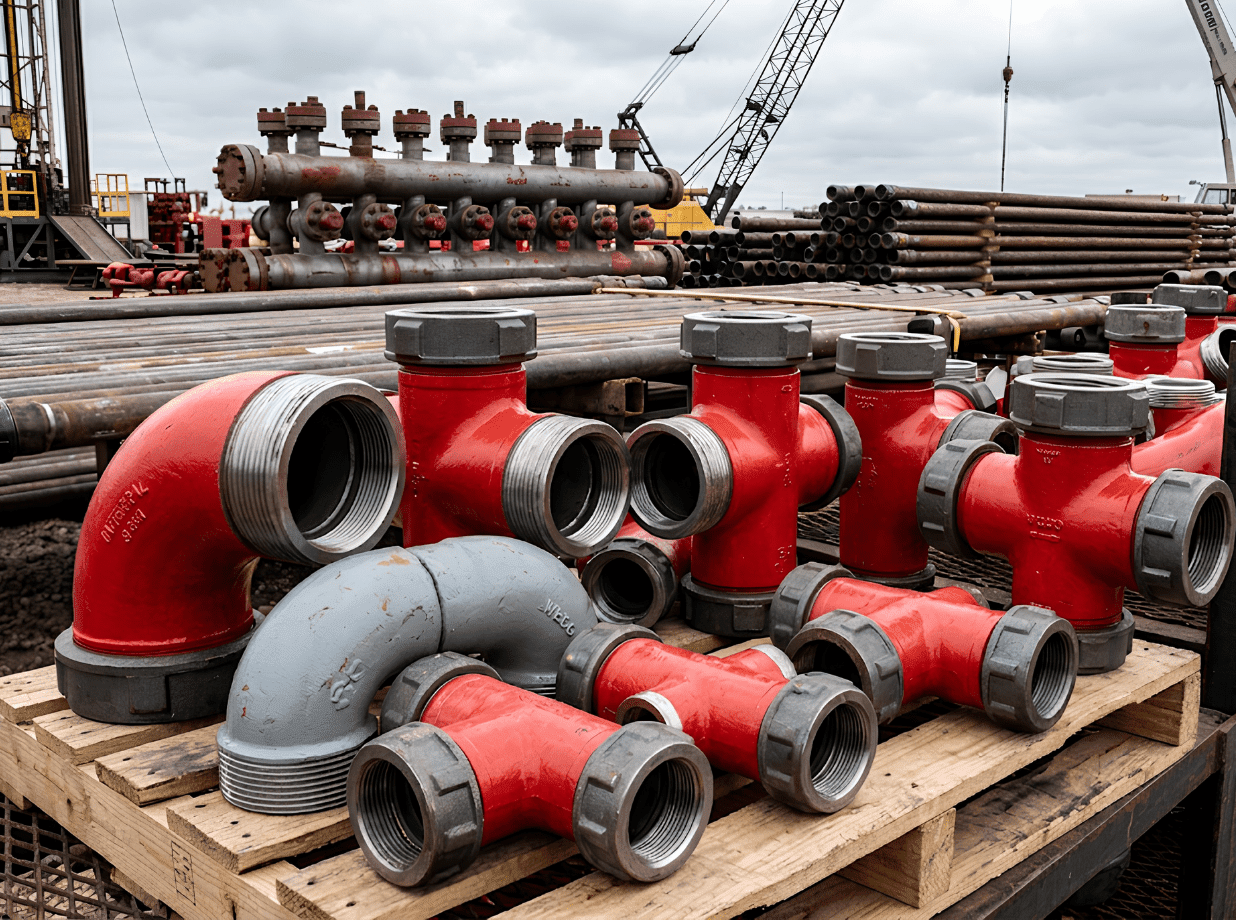

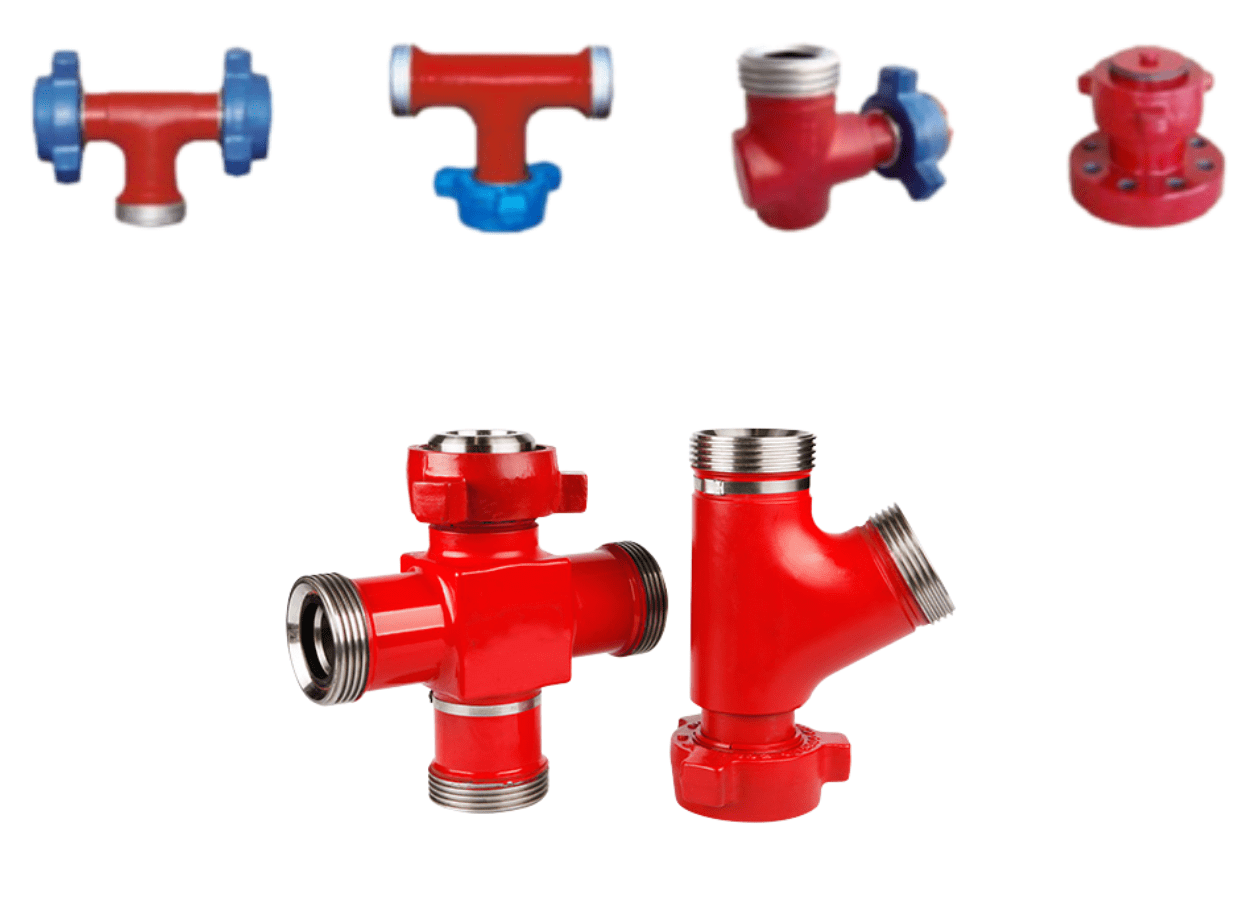

Integral Fittings
- Fittings feature high-quality forged construction with integral union end connections for high strength.
- Integral fittings come with full material traceability.
- Our Sourcing partners also supplies Integral fittings in customized end connections.
