Hose & Line pipe
Integrated solutions for high-volume fluid transport: composite hoses, API line pipes, and advanced valve control.

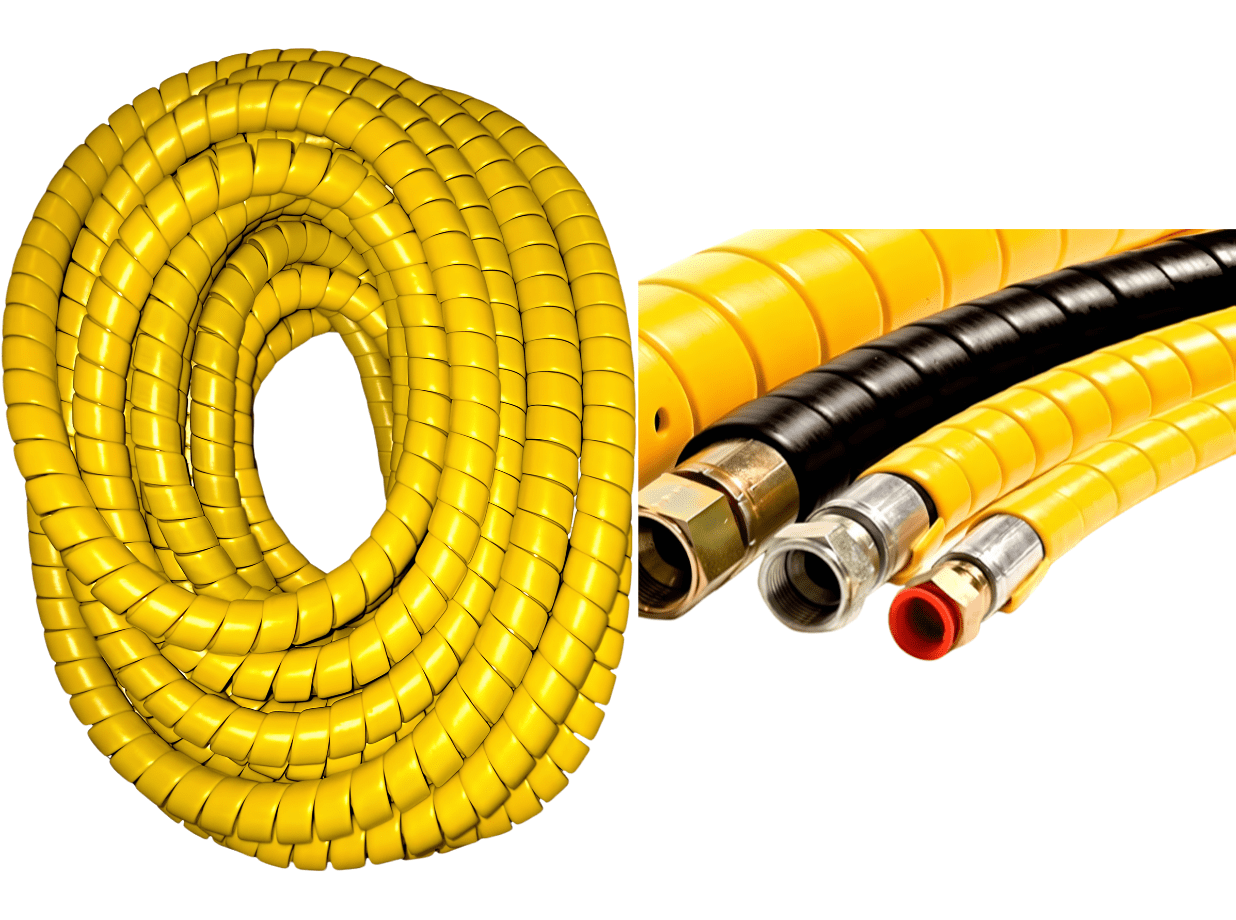

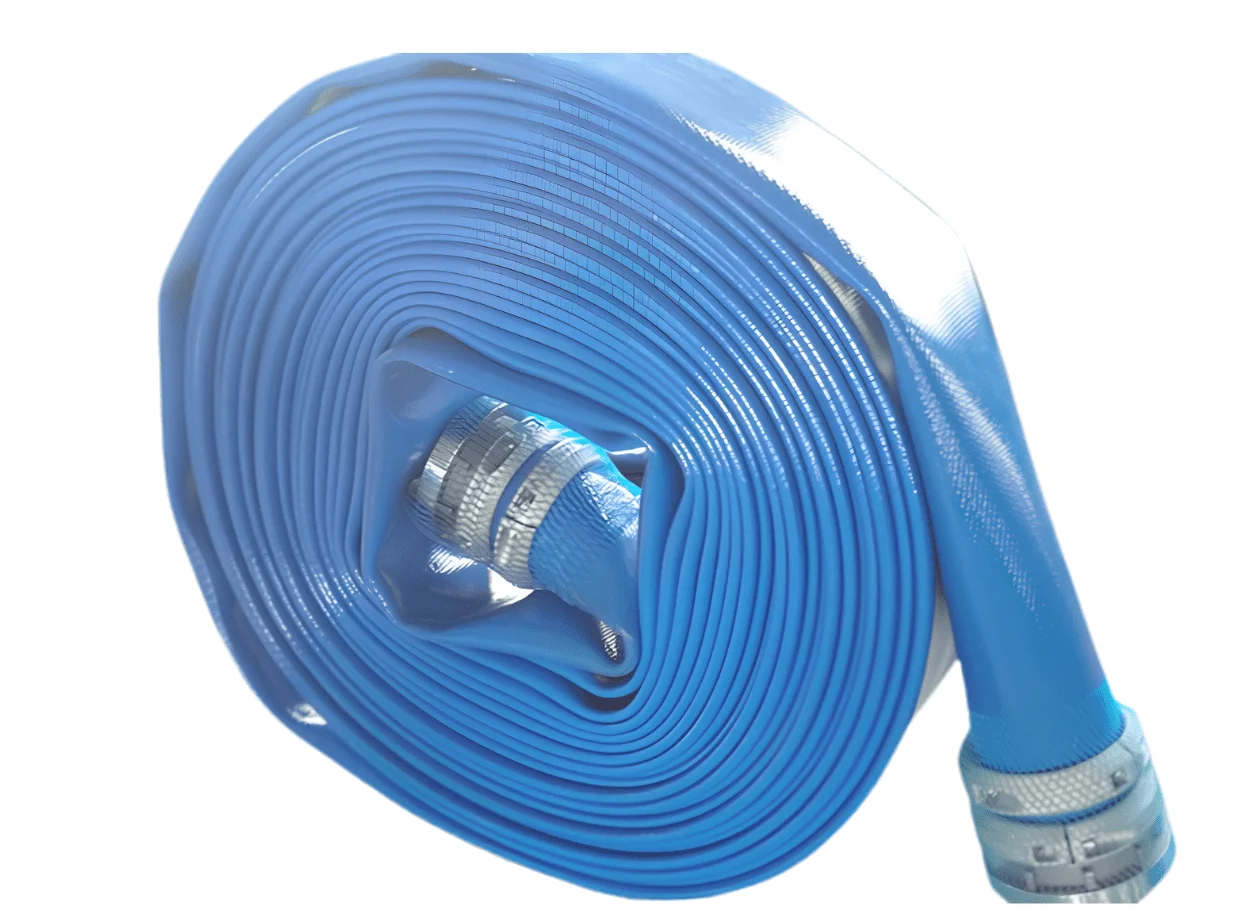

Specialized Industrial Hoses
Flexible Conveyance
High-integrity hoses designed for the safe transfer of water, aggressive chemicals, and hydrocarbons in mobile or stationary applications.
- Media: Chemical-resistant EPDM, Nitrile Oil-resistant, and Composite multi-layer
- Reinforcement: High-tensile synthetic textile or steel wire helix
- Working Pressure: Standard duty to ultra-high pressure (up to 5,000 PSI)
- Connections: Camlock, Flanged, or Threaded (NPT/BSPP) crimped ends
- Service: Rated for suction, discharge, and high-temperature steam

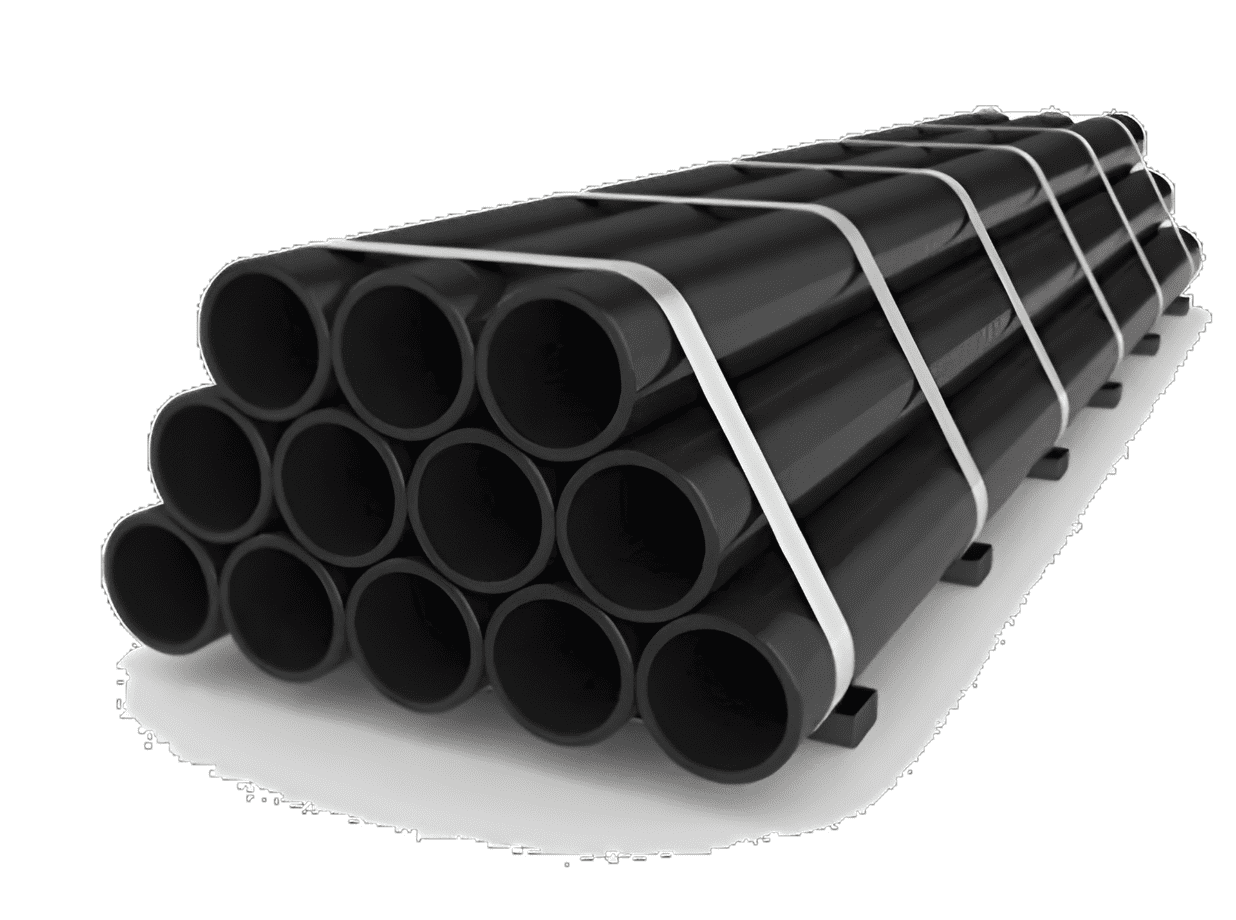

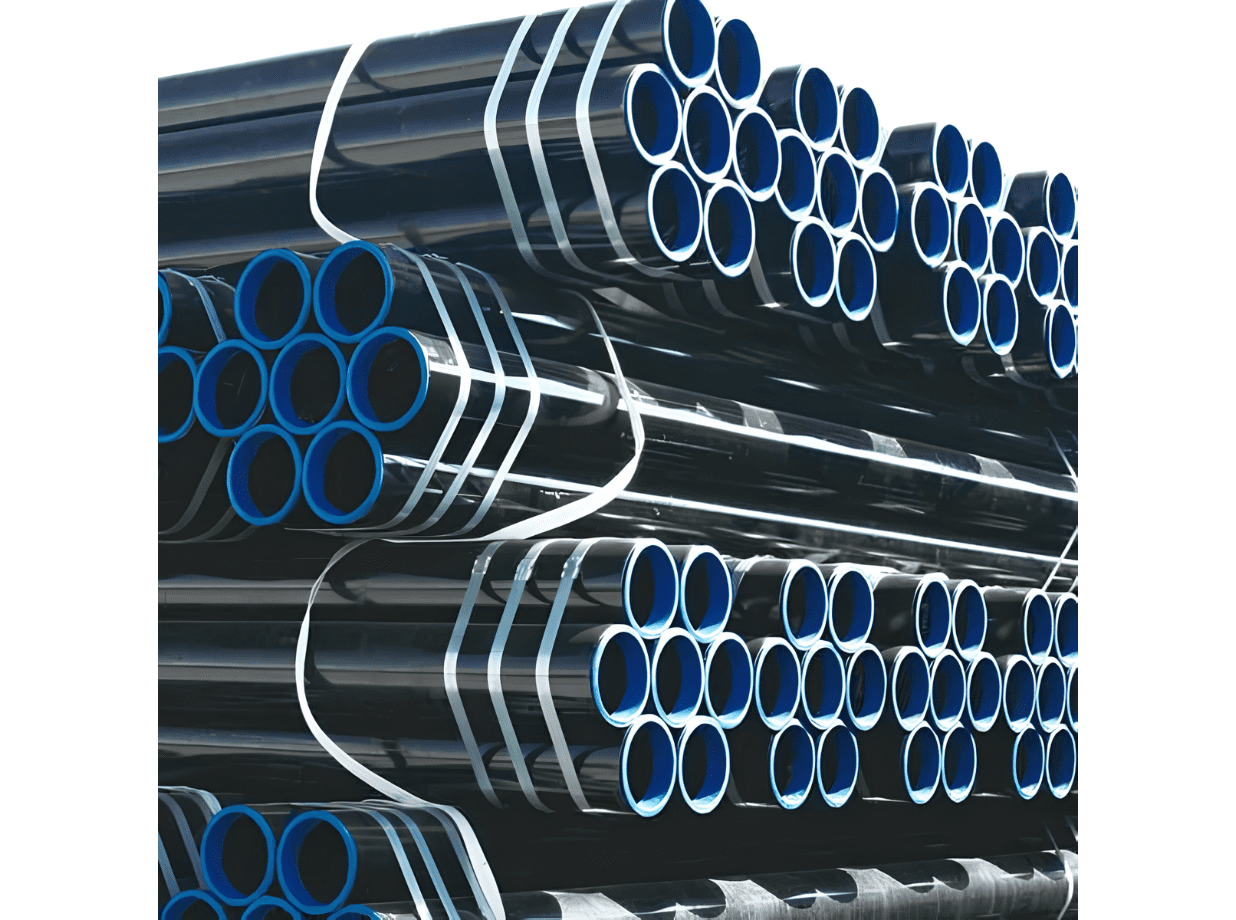

API 5L Grade Line Pipe
Structural Midstream
Heavy-duty carbon steel piping manufactured for the transport of gas, water, and oil in the petroleum and natural gas industries.
- Grades: PSL1 & PSL2 (Grades B through X70)
- Process: Seamless (SMLS) or Electric Resistance Welded (ERW)
- Coating: FBE, 3LPE, or Galvanized for corrosion protection
- Testing: Hydrostatic, Ultrasonic, and Charpy V-Notch impact testing
- Applications: Long-distance transmission lines and refinery offsites

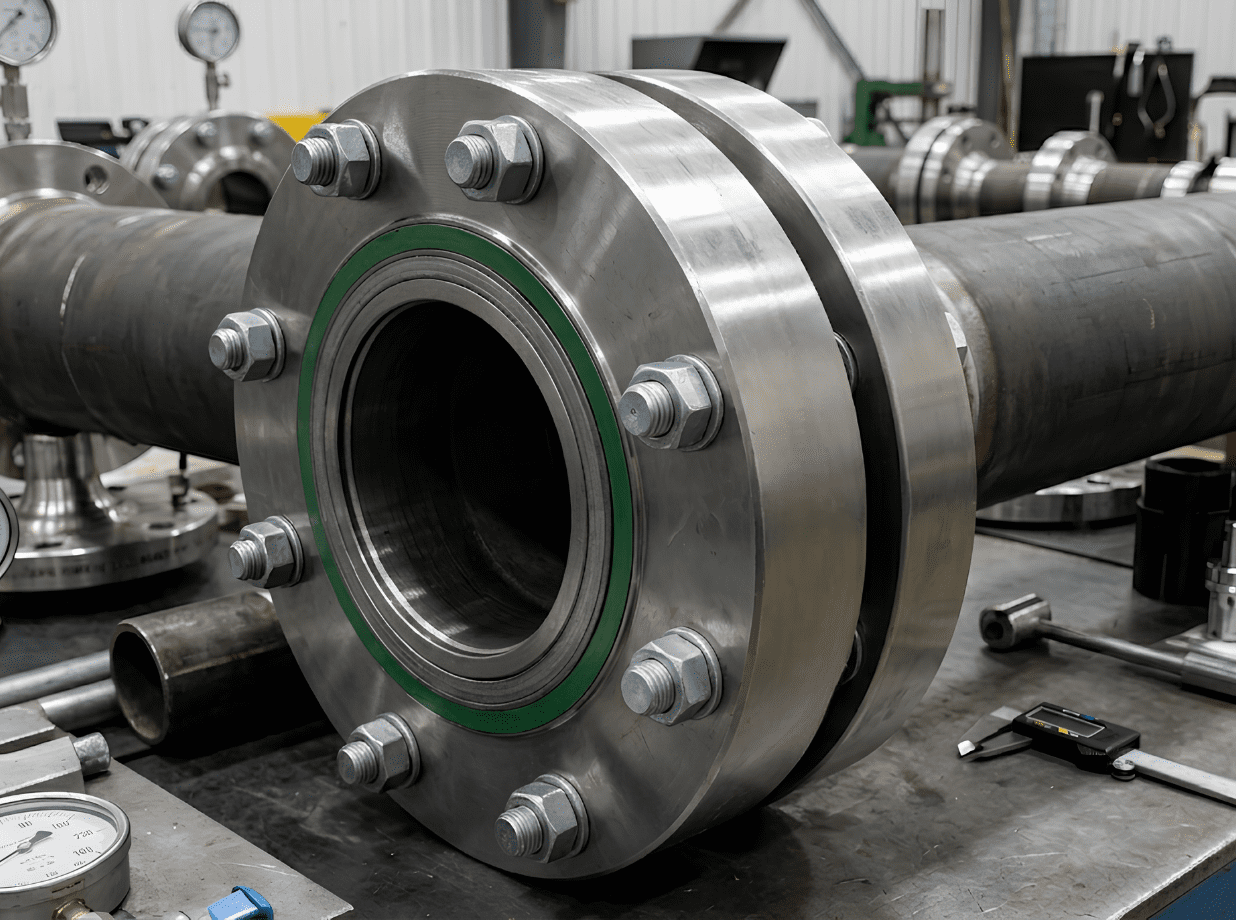

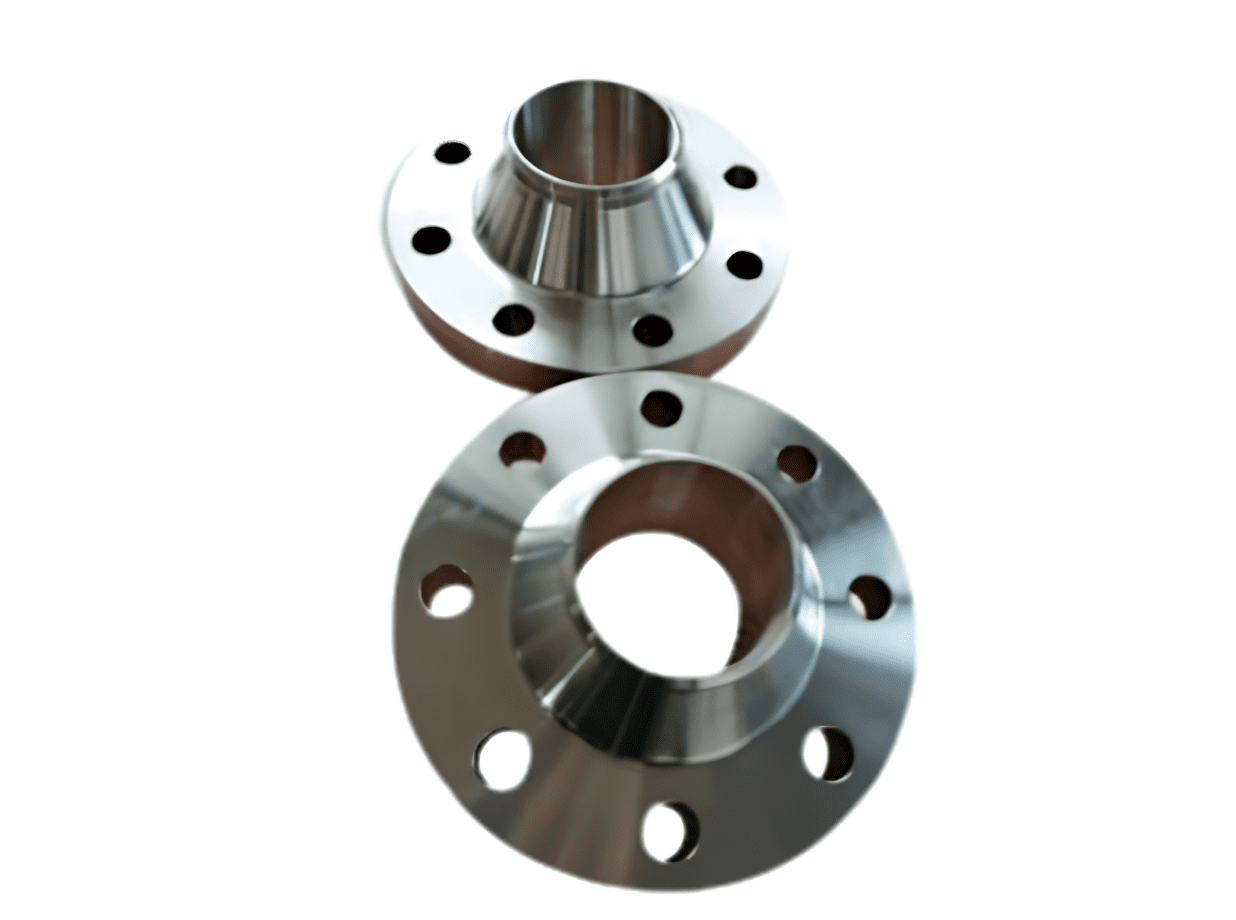

ASME 16.5 & 16.20 Flanges
Sealed Connections
Precision-forged flanges and high-integrity Ring Type Joints (RTJ) designed for secure, bolt-tight connections in high-pressure piping systems.
- Types: Weld Neck, Slip-On, Blind, and Socket Weld
- Standards: ASME B16.5 (Flanges) and B16.20 (Metallic Gaskets)
- Pressure Classes: 150# through 2500# ratings
- Face: Raised Face (RF) or Ring Type Joint (RTJ) for metal-to-metal seals
- Traceability: Heat numbers and MTRs provided for every component

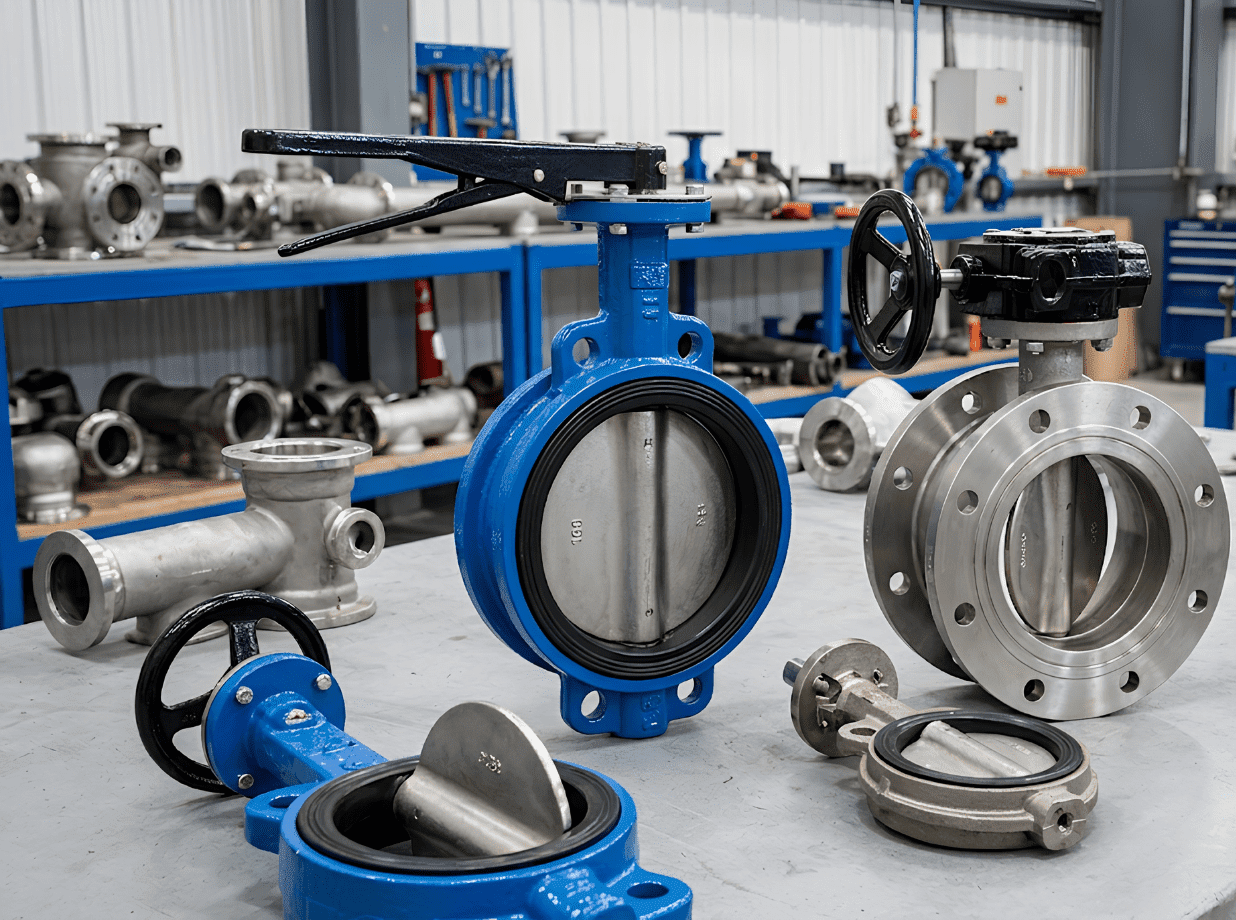

Industrial Butterfly Valves
Flow Isolation
Quarter-turn valves designed for efficient flow regulation or isolation in large-diameter piping, featuring a low-profile, space-saving design.
- Body Styles: Wafer, Lug, and Flanged patterns
- Seating: Resilient EPDM/Buna-N or High-Performance Metal-to-Metal
- Actuation: Lever, Gear-operated, Pneumatic, or Electric
- Size Range: 2" to 48" nominal diameter
- Design: Triple-offset options for bubble-tight shut-off in extreme heat
