Gaskets
High-performance sealing solutions for Upstream, Midstream, and Petrochemical applications.
Ring Joint Gaskets (RTJ)
High-Pressure Sealing
Precision-machined metallic gaskets designed for high-pressure and high-temperature services. Our RTJs ensure a gas-tight seal in the most demanding oilfield environments.
- Standards: API 6A, API 17D, and ASME B16.20
- Types: R (Oval/Octagonal), RX, and BX for subsea
- Materials: Soft Iron, Low Carbon Steel, SS316, SS304, Inconel

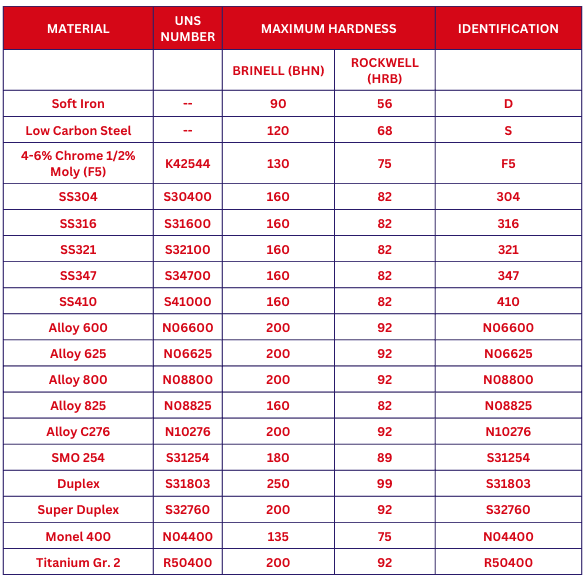

- Hardness strictly controlled to ensure flange protection

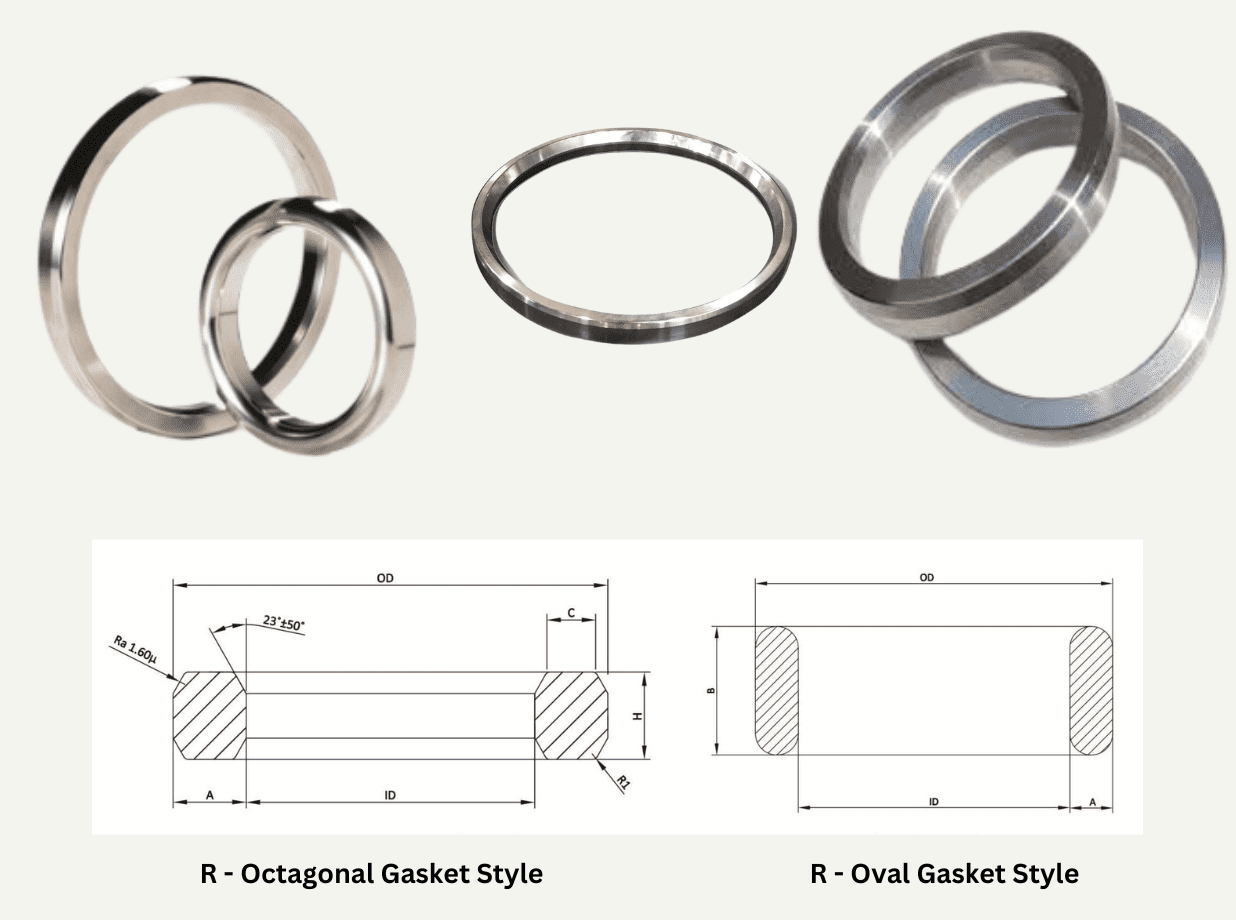

R Type (Octagonal & Oval)
API 6A / ASME B16.20
Designed for round and flat bottom ring groove flanges. Our Octagonal and Oval types are interchangeable on modern octagonal grooved flanges.
- Pressures: Up to 10,000 PSI
- Tolerances: ± 0.008" (Width/Height)
- Sealing Face: 23° Angle (± 0.50° tolerance)
- Interchangeable designs for modern piping

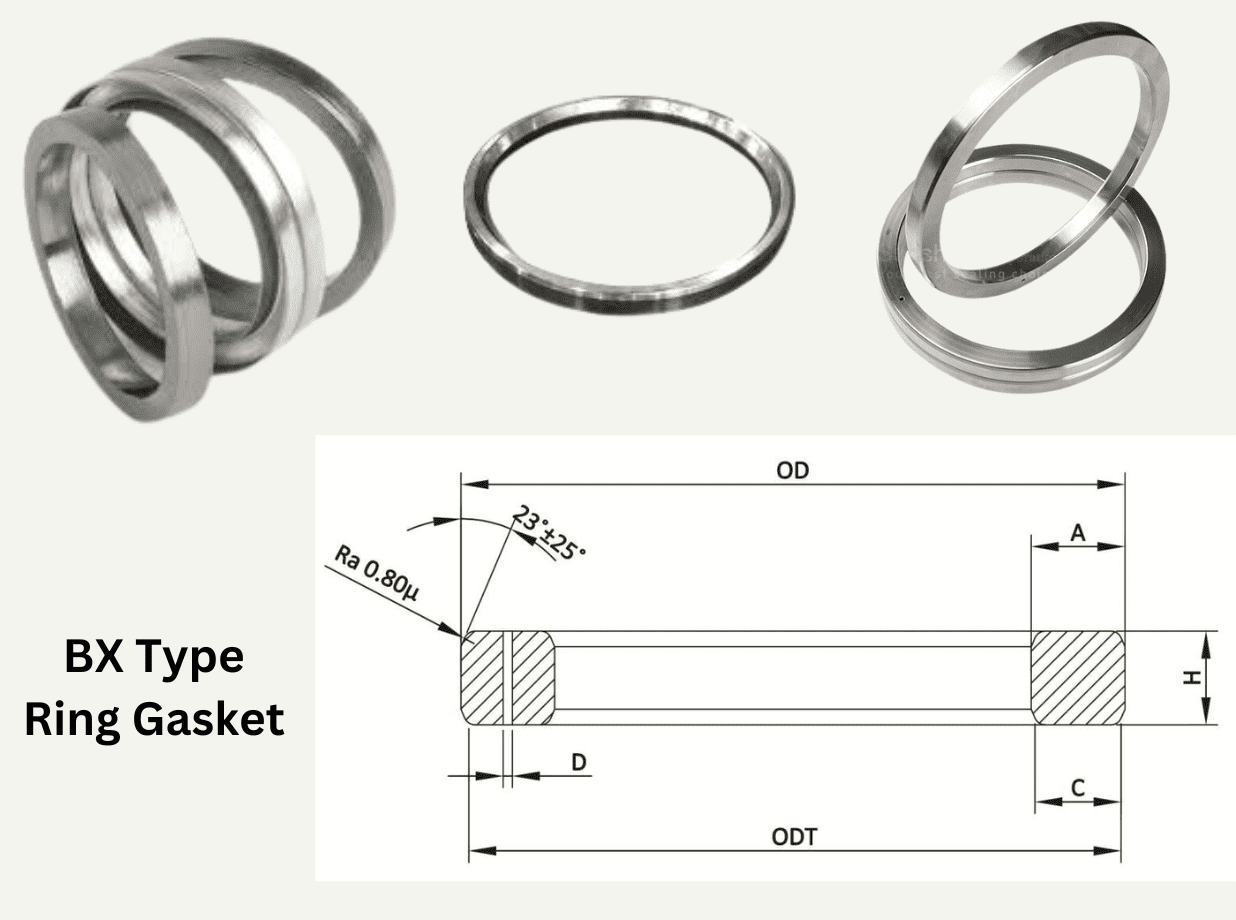

BX Type Ring Gaskets
High Pressure Specialist
Specifically designed for high-pressure systems up to 20,000 PSI. BX gaskets feature a pressure relief hole to equalize pressure across sealing faces.
- Standard: API 6A Requirements
- Applications: High-pressure wellhead & X-mas trees
- Feature: Integrated Pressure Relief Holes
- Material: High-grade Alloy & Stainless Steels
RX Type Ring Gaskets
High-Performance Sealing
The RX Type ring joint gasket is a pressure-energized adaptation of the standard R Type design. It is engineered for higher pressure environments and provides a more robust seal by utilizing the internal line pressure to increase the sealing force.
- Design: Pressure-energized, API 6A and ASME B16.20 compliant
- Pressure Rating: Up to 5,000 PSI
- Interchangeability: Fully interchangeable with standard R Type grooves
- Key Feature: Increased height creates a "stand-off" between flanges for added stability
- Material Options: Soft Iron, Low Carbon Steel, SS316, and Exotic Alloys
- Application: Wellheads, blow-out preventers, and high-vibration manifolds

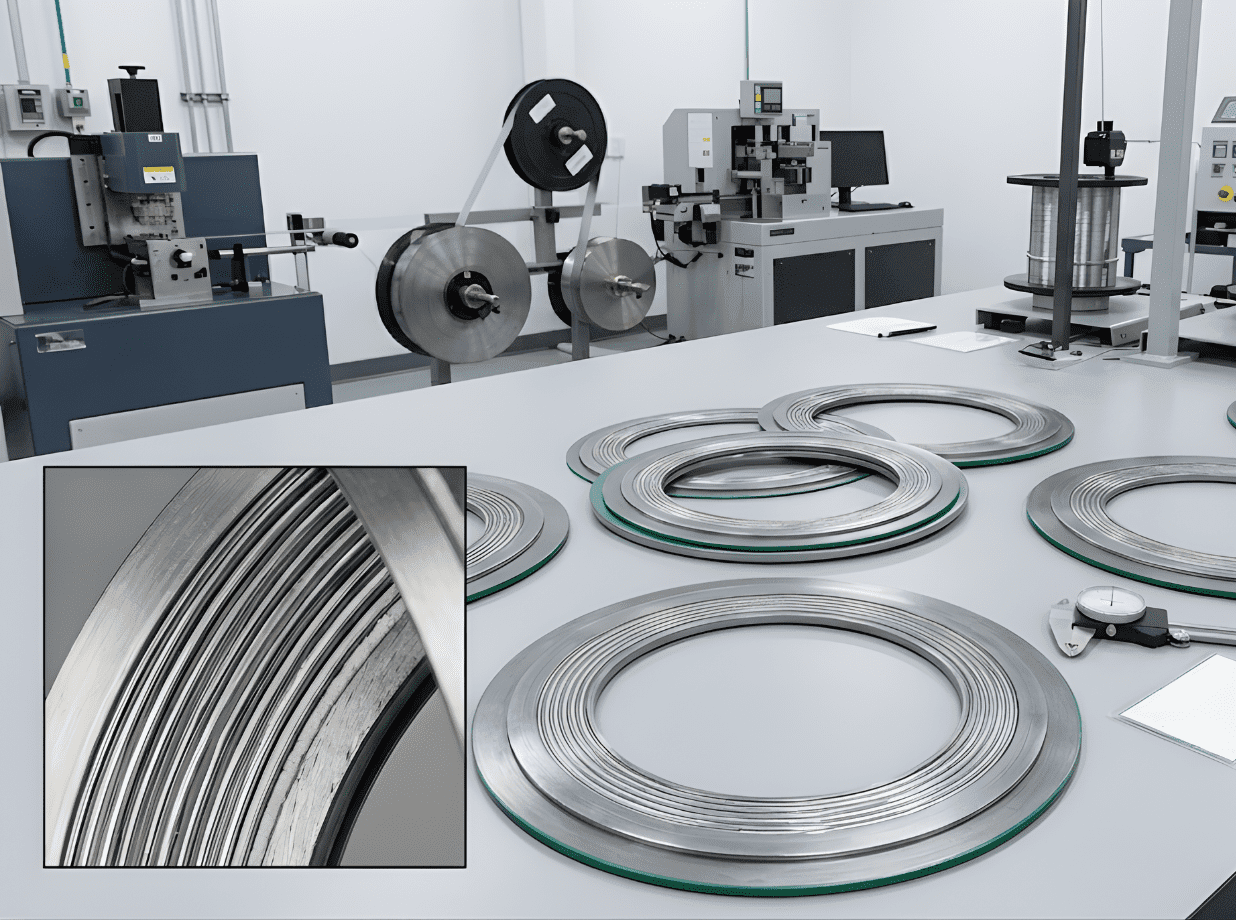

Spiral Wound & Sheet Gaskets
Resilient Sealing
Providing dynamic sealing for heat exchangers, pressure vessels, and flange joints. Available in Style R, RIR, CG, and CGI.
- Fillers: Graphite, PTFE, Mica
- Pressure Class: 150# to 2500#
- Custom Cut Sheet Gaskets available
- Non-Asbestos & Metallic options

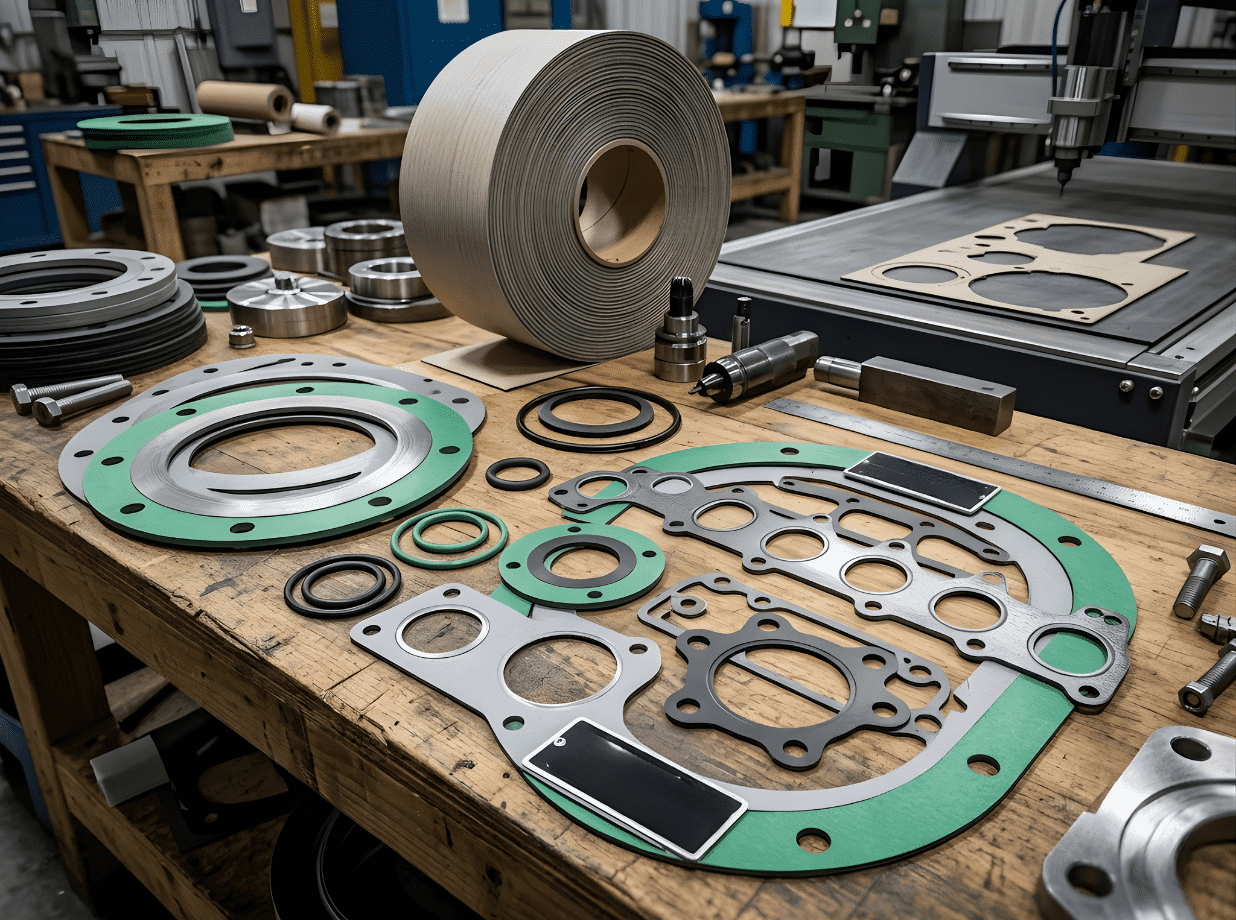

Compressed Sheet & Cut Gaskets
Versatile Utility
High-quality non-asbestos fiber sheets and custom-cut gaskets for general-purpose utility sealing, chemical resistance, and steam applications.
- Material: Non-Asbestos (CNAF), PTFE, and Graphite
- Custom Cutting: Die-cut or CNC cut to exact drawings
- Media Compatibility: Water, Oil, Steam, and Chemicals
- Available in Full Face or Ring (IBC) configurations
